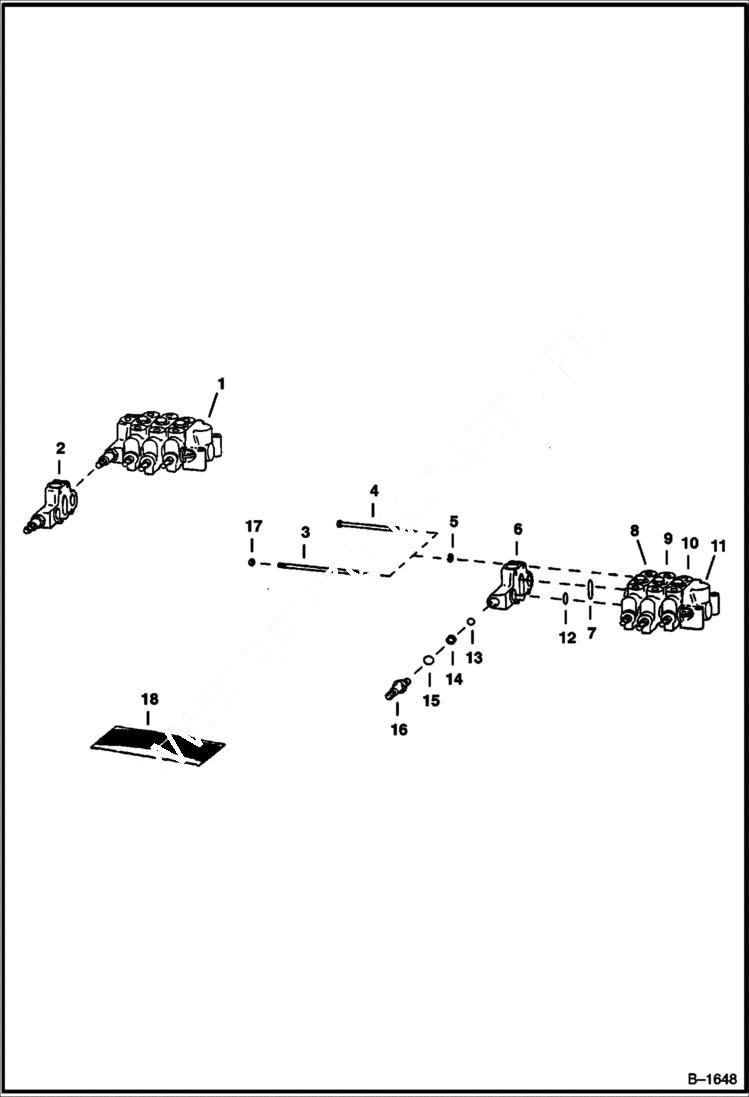

Запчасти Bobcat 300s VALVE SECTION - INLET HYDRAULIC SYSTEM

1

VALVE NLA - control - Was 6512017 - A

2

6511911

SECTION valve - Inlet

3

ROD NLA - tie - Use on 3 section valve - Was 6510301 - A

4

17C580

BOLT Use on 2 section valve

5

4E5

WASHER lock

6

HOUSING NLA - inlet section

7

O-RING NSS

8

SECTION See Illustration VALVE SECTION - TILT CONTROL/ B1652 NSS - VALVE - TILT

9

SECTION See Illustration VALVE SECTION - LIFT CONTROL/ C1672 NLA - VALVE - LIFT

10

SECTION See Illustration VALVE SECTION - AUXILIARY CONTROL/ C1673 NLA - VALVE - AUX. - WAS 6519474 - A

11

SECTION NLA - Valve - Outlet - Was 6511910 - A

12

O-RING NSS

13

25K20016

O RING 10

14

RING NLA - back-up

15

79K10

O RING 10

16

RELIEF VALVE NLA - Was 6510179 - A

17

61D5

NUT

18

SEAL KIT NLA - ref. 7, 12 - Between Sections for 2 and 3 section valve - Was 6512007 - A
