VALVE SECTION - OUTLET Husco

Запчасти Bobcat 300s VALVE SECTION - OUTLET Husco HYDRAULIC SYSTEM

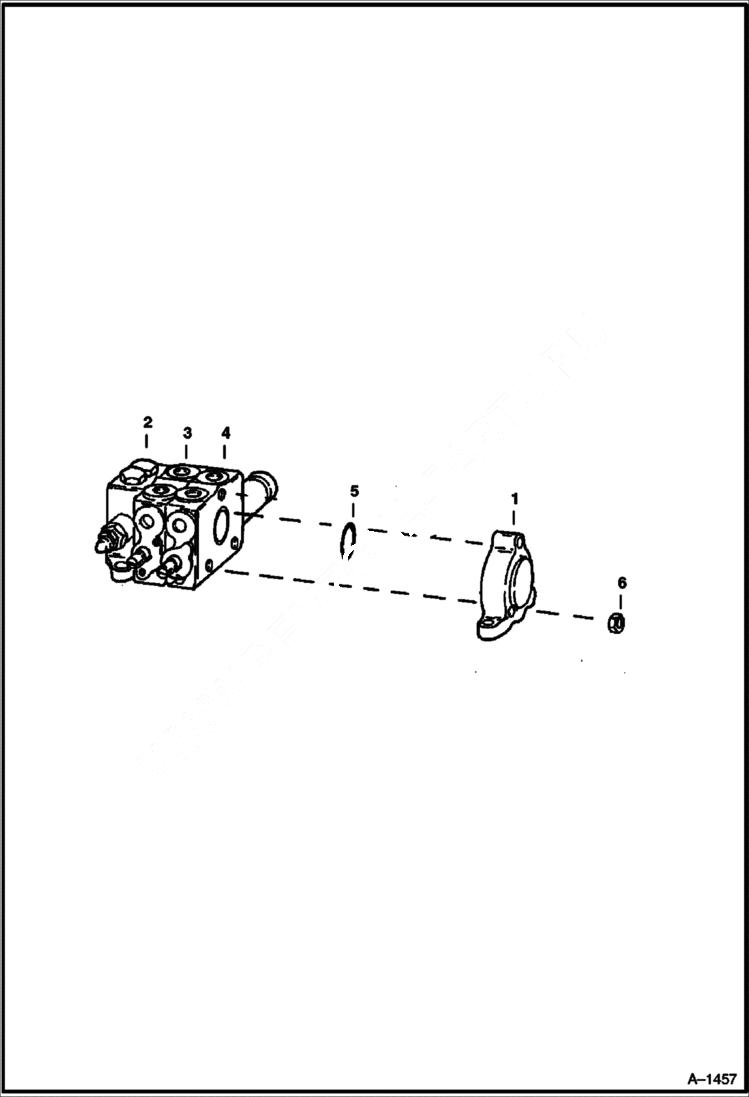

Схема запчастей Bobcat 300s - VALVE SECTION - OUTLET Husco HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

948010

CAP valve - Outlet

2

6517499

SECTION See Illustration VALVE SECTION - INLET/ B1305 VALVE - INLET

3

6517501

SECTION See Illustration VALVE SECTION - TILT CONTROL/ B1306 VALVE - TILT

4

SECTION See Illustration VALVE SECTION - INLET/ B1305 See Illustration VALVE SECTION - LIFT CONTROL/ B1307 NLA - VALVE - LIFT - SEE NOTE

5

25K40208

O RING 10

6

61D6

NUT 5
