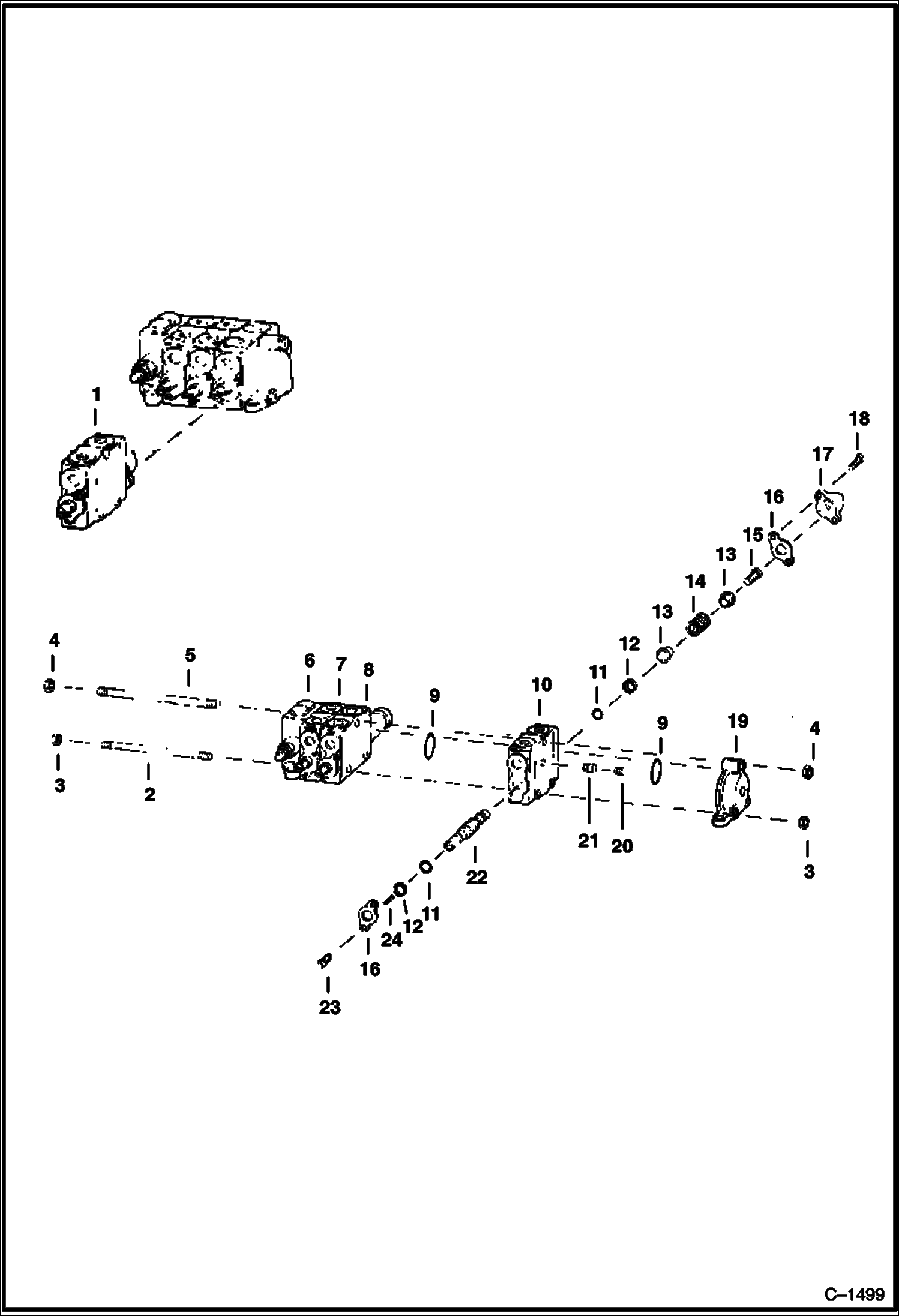

Запчасти Bobcat 300s VALVE SECTION - AUXILIARY CONTROL Husco HYDRAULIC SYSTEM

1

SECTION NLA - valve - Aux. - Was 6517502 - A

2

948187

TIE ROD stud

3

61D5

NUT

4

62D6

NUT 5

5

SCREW NSS - stud

6

6517499

SECTION See Illustration VALVE SECTION - INLET/ B1305 VALVE - INLET

7

6517501

SECTION See Illustration VALVE SECTION - TILT CONTROL/ B1306 VALVE - TILT

8

SECTION See Illustration MAIN FRAME HYDRAULIC SYSTEM/ D1180 NLA - VALVE - LIFT - REF. 35

9

25K40208

O RING 10

10

HOUSING NLA - valve

11

25K30018

O RING 10

12

948021

SEAL wiper

13

948017

SEAT spring

14

948018

SPRING compression

15

948191

CAPSCREW cap

16

948016

PLATE seal

17

948192

CAP plunger

18

73G412

SCREW cap

19

948010

CAP See Illustration VALVE SECTION - OUTLET/ A1457 VALVE - OUTLET

20

948022

SPRING

21

948015

POPPET

22

SPOOL NLA

23

SCREW NLA - Was 71G000406B - A

24

6518625

PLUNGER end
