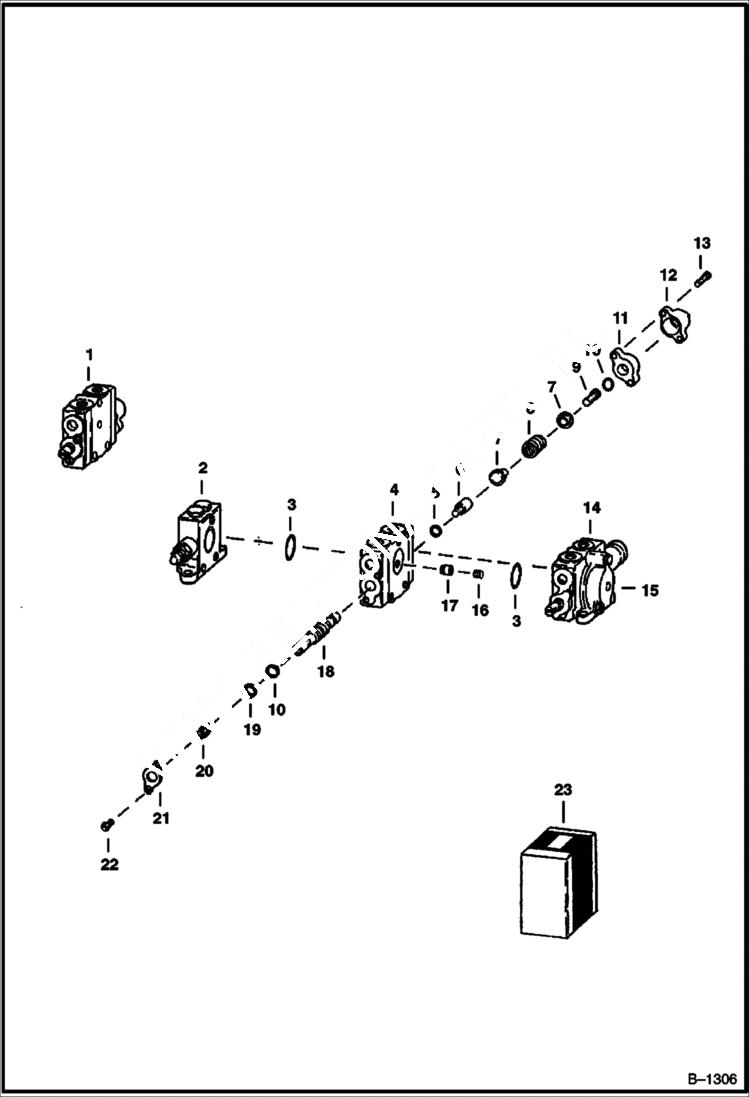

Запчасти Bobcat 300s VALVE SECTION - TILT CONTROL Husco HYDRAULIC SYSTEM

1

6517501

SECTION valve - Tilt

2

6517499

SECTION See Illustration VALVE SECTION - INLET/ B1305 VALVE - INLET

3

25K40208

O RING 10 Was NSS - D

4

HOUSING NLA - valve

5

79K3

O RING 10 Was NSS - D

6

6518626

ADAPTER

7

948017

SEAT spring

8

948018

SPRING compression

9

948191

CAPSCREW cap

10

25K30020

O-RING 10 Was NSS - D

11

SPACER NLA - Was 6518627 - A

12

948192

CAP plunger

13

73G424

SCREW cap

14

SECTION See Illustration VALVE SECTION - LIFT CONTROL/ B1307 NLA - VALVE - LIFT

15

948010

CAP See Illustration VALVE SECTION - OUTLET/ A1457 VALVE - OUTLET

16

948022

SPRING

17

948015

POPPET

18

SPOOL NLA

19

6518623

WIPER Was NSS - D

20

6518625

PLUNGER plunger

21

6518628

PLATE seal

22

SCREW NLA - Was 71G000406B - A

23

SEAL KIT NSS - W/Ref. 3, 5, 10 & 19 - Was 6509813 - A
