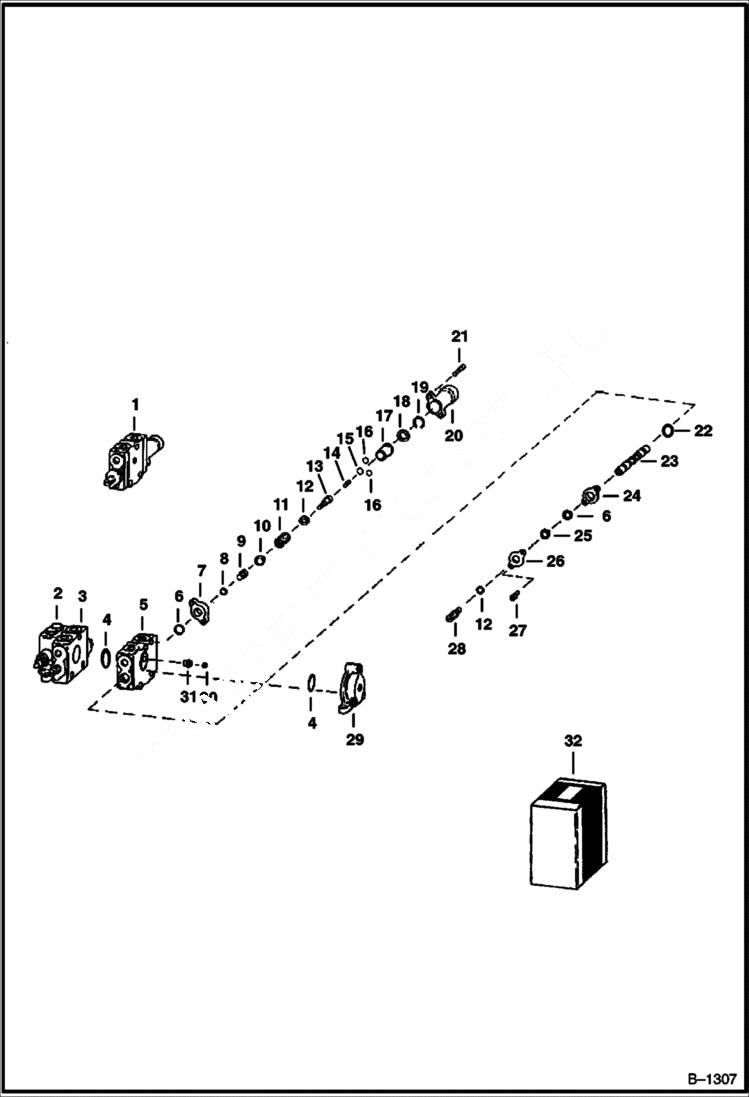

Запчасти Bobcat 300s VALVE SECTION - LIFT CONTROL Husco HYDRAULIC SYSTEM

1

SECTION See Illustration MAIN FRAME HYDRAULIC SYSTEM/ D1180 NLA - VALVE - LIFT - SEE NOTE REF. 35

2

6517499

SECTION See Illustration VALVE SECTION - INLET/ B1305 VALVE - INLET

3

6517501

SECTION See Illustration VALVE SECTION - TILT CONTROL/ B1306 VALVE - TILT

4

25K40208

O RING 10 Was NSS - D

5

HOUSING NLA

6

25K30020

O-RING 10 Was NSS - D

7

SPACER NLA - Was 6518627 - A

8

79K3

O RING 10 Was NSS - D

9

6518626

ADAPTER

10

948017

SEAT spring

11

948018

SPRING

12

6518629

WASHER

13

PIN NLA - float - Was 6518630 - A

14

SPRING NLA - Was 948020B - A

15

6518619

BALL

16

BALL NLA - Was 877420B - A

17

SLEEVE NLA - Was 6518631 - A

18

SPACER NLA - Was 6518622 - A

19

6518620

SNAP RING

20

6518624

CAP plunger

21

73G424

SCREW cap

22

25K30030

O RING 10 Was NSS - D

23

SPOOL NLA

24

6518632

SPACER

25

6518623

WIPER Was NSS - D

26

6518628

PLATE seal

27

73G414

CAPSCRW10 cap

28

6518625

PLUNGER plunger

29

948010

CAP See Illustration VALVE SECTION - OUTLET/ A1457 VALVE - OUTLET

30

948022

SPRING

31

948015

POPPET

32

SEAL KIT NSS - W/Ref. 4, 6, 8, 22 & 25 - Was 6509812 - A
