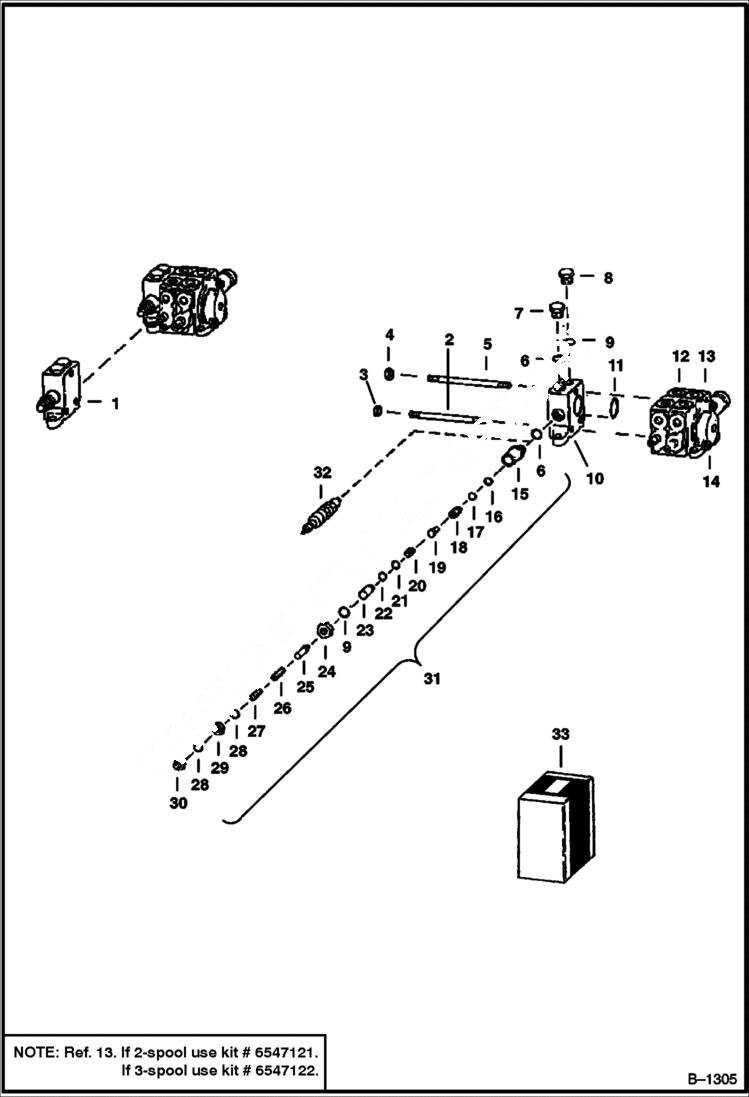

Запчасти Bobcat 300s VALVE SECTION - INLET Husco HYDRAULIC SYSTEM

1

6517499

SECTION valve - Inlet

2

STUD NLA - Was 948014B - A

3

61D5

NUT

4

62D6

NUT 5

5

STUD NLA - Was 948013B - A

6

O-RING NSS

7

PLUG NLA - check

8

PLUG NLA - check

9

O-RING NSS

10

HOUSING NLA - valve

11

O-RING NSS

12

6517501

SECTION See Illustration VALVE SECTION - TILT CONTROL/ B1306 VALVE - TILT

13

SECTION See Illustration VALVE SECTION - LIFT CONTROL/ B1307 NLA - VALVE - LIFT

14

948010

CAP See Illustration VALVE SECTION - OUTLET/ A1457 VALVE - OUTLET

15

RELIEF VALVE NLA - relief valve - Was 6519915 - A

16

RING NLA - back-up - Was 6518942 - A

17

O-RING NLA - Was 76K000011B - A

18

POPPET NSS

19

PISTON NSS

20

SPRING NSS

21

O-RING NSS

22

RING NSS - back-up

23

POPPET NSS

24

PLUG NSS

25

POPPET NSS

26

SPRING NSS

27

SCREW NSS

28

WASHER NSS

29

NUT NSS

30

NUT NSS - castle

31

RELIEF VALVE NLA - W/Ref. 6-30 - Replaced by Ref. 32

32

6519915

RELIEF VALVE

33

6661033

SEAL KIT W/Ref. 6, 9 & 11 - Was 6509811 - A
