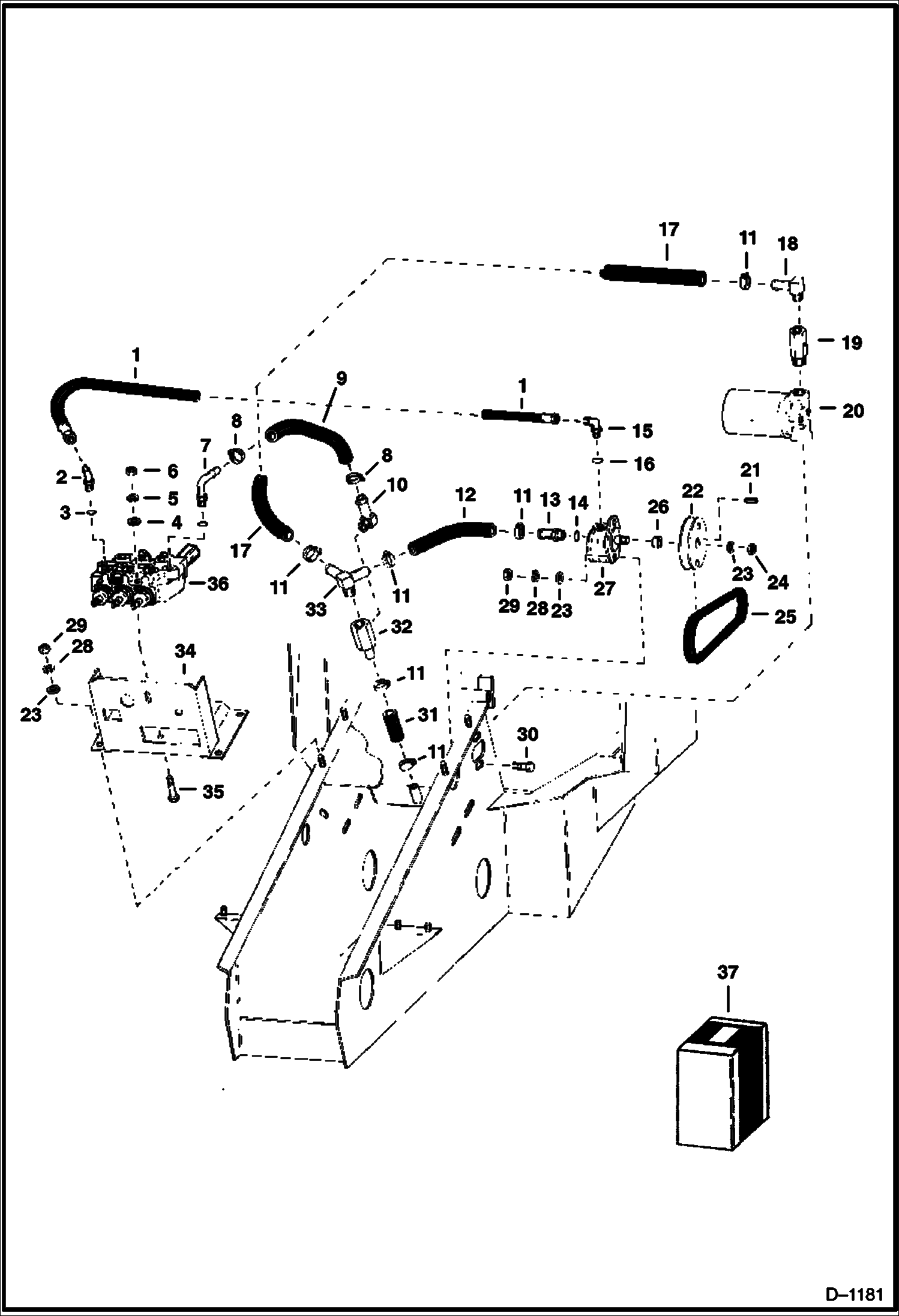

Запчасти Bobcat 300s MAIN FRAME HYDRAULIC SYSTEM S/N 5111 & Above - With Cessna Valve HYDRAULIC SYSTEM

1

6542521

HOSE

2

1300059

ELBOW W/Ref. 3

3

79K8

O RING 10

4

25E15

WASHER

5

4E5

WASHER

6

61D5

NUT

7

ELBOW NLA - Was 6510790 - A

8

42H12

CLAMP 10 Was 6515132 - A

9

6547715

HOSE

10

ELBOW NLA - Was 6510791 - A

11

42H12

CLAMP 10

12

6542057

HOSE

13

1316263

ADAPTER W/Ref. 14

14

79K10

O RING 10

15

17K5

ELBOW W/Ref. 16

16

79K6

O RING 10

17

6544380

HOSE

18

666844

ELBOW

19

6519709

CHECK VALVE

20

6541193

FILTER ASSY. See Illustration OIL FILTER/ B1304

21

7J1008

KEY

22

6509176

SHEAVE pump

23

25E17

WASHER 5

24

82D6

NUT

25

6500959

BELT pump

26

6551997

SPACER sheave

27

PUMP See Illustration HYDRAULIC PUMP/ C1250 HYD. - CESSNA NLA - Hyd. - Cessna - Was 6508434 - A

27

PUMP See Illustration HYDRAULIC PUMP/ C1675 NLA - HYD. - PARKER

28

4E6

WASHER

29

61D6

NUT 5

30

17C616

BOLT 5

31

6541686

HOSE return

32

RELIEF VALVE See Illustration RELIEF VALVE/ B1502 NLA - Was 6544379 - A

33

6541691

FITTING

34

6547630

BRACKET valve

35

17C548

BOLT

36

VALVE See Illustration HYDRAULIC CONTROL VALVE/ C1674 NLA - HYDRAULIC CONTROL CESSNA - 2 SPOOL - WAS 6510798 - A

37

6543926

KIT Cessna valve installation kit - 2 Spool - Incl. Ref. 2 - 10, 31, 34 & 35 - From Wards and Husco to Cessna
