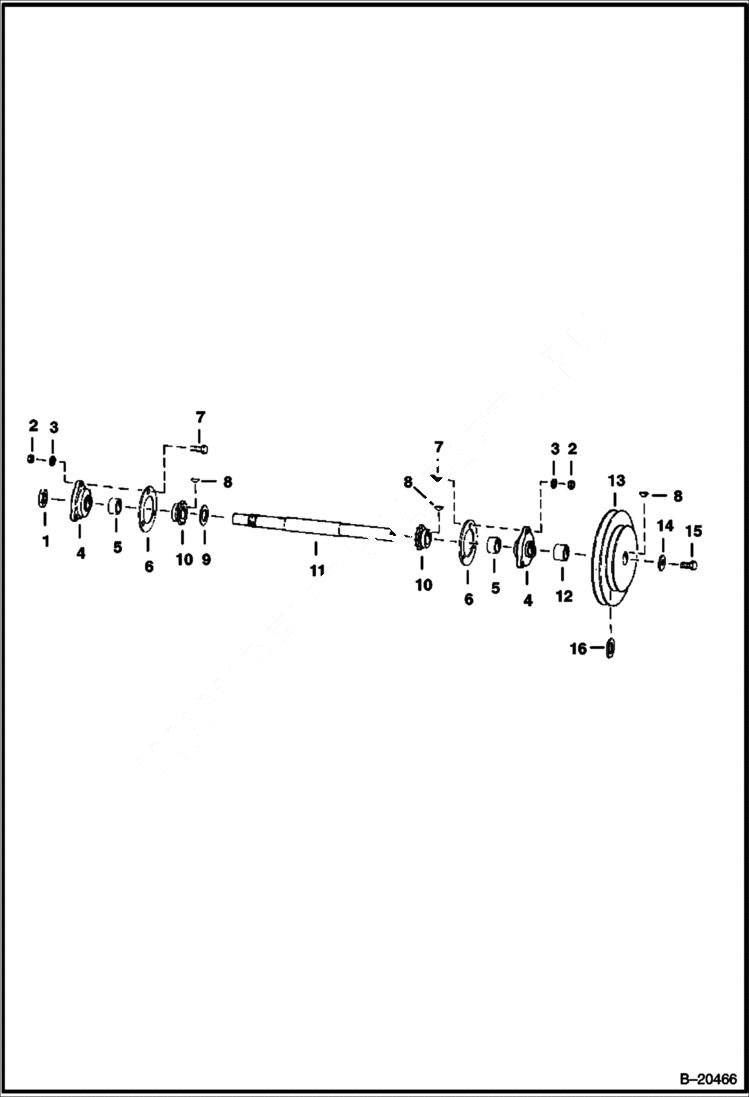

Запчасти Bobcat 300s UPPER JACKSHAFT DRIVE TRAIN

1

NUT NLA - Was 29D000018B - A

2

81D6

NUT

3

25E17

WASHER 5

4

6511646

BEARING ASSY.

5

SPACER NLA - Was 6506829 - A

6

6500758

GASKET bearing

7

17C624

BOLT 5

8

5J806

KEY

9

6555918

SHIM

9

662249

SHIM

10

SPROCKET NLA - Was 6504461 - A

11

6541048

JACKSHAFT

12

SPACER sprocket NLA - sprocket - Was 6500943 - A

13

SHEAVE NLA - driven - Order 6509991 & 6509993

13

13

SHEAVE NLA - driven - 9'' (229mm) - Was 6509991 - A

13

SHEAVE NLA - driven - 7'' (177.8mm) - Was 6509993 - A

13

SHEAVE NLA - driven (Dual 6.45''(163.8mm) & 9.45''(240.0mm) - Use 6509991 & 6509993 - Was 6500894 - A

14

6558268

WASHER

15

17C816

BOLT

16

6502521

WASHER
