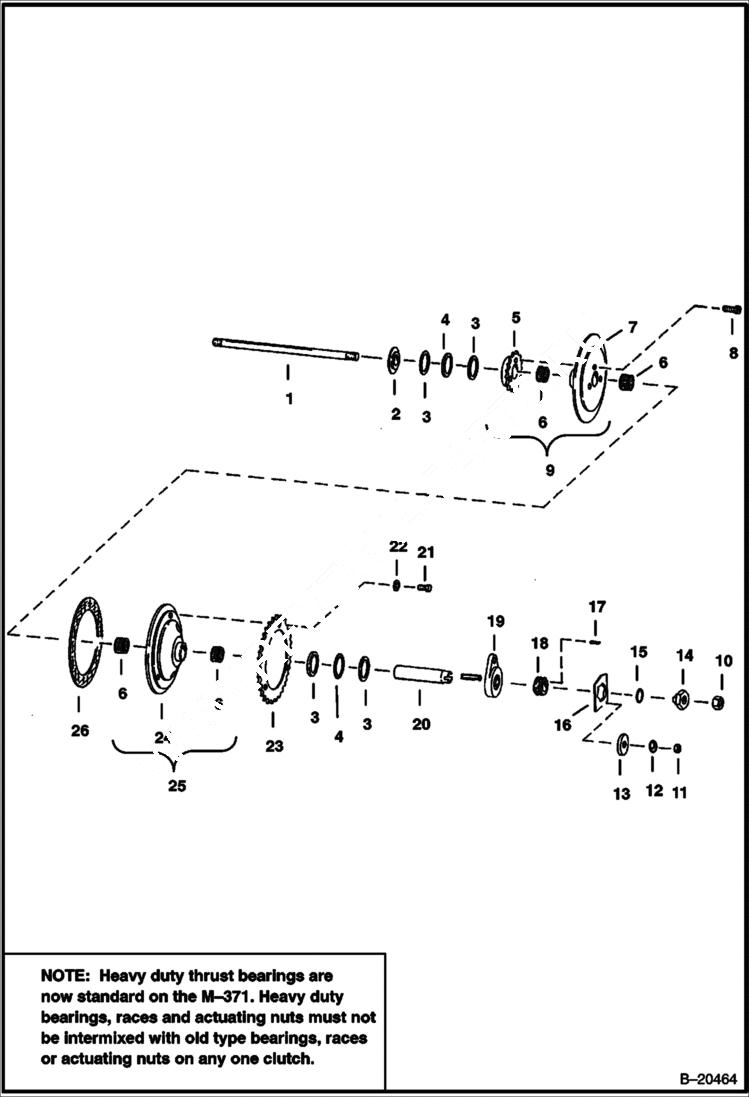

Запчасти Bobcat 300s CLUTCH DRIVE TRAIN

1

SHAFT NLA - Was 6500346 - A

2

CARRIER NLA - Was 6500926 - A

3

6540478

RACE thrust

3

RACE NLA - thrust - See Note Above

4

6519100

BEARING thrust

4

BEARING NLA - thrust - See Note Above

5

6502283

SPROCKET

6

6515068

BEARING needle

7

6502532

PLATE, CLUTCH inside clutch

8

1318464

SCREW socket head

9

PLATE NLA - clutch assy. - Inside - Order Ref. 5-8

10

81D10

NUT

11

61D6

NUT 5

12

4E6

WASHER lock

13

WASHER NLA - Was 6509801 - A

14

6500709

NUT clutch adjusting

15

25K40028

O RING 10

16

BRACKET NLA - Was 6500345 - A

17

7J1008

KEY

18

6502311

THREAD clutch adjusting - L.H.

18

6502312

THREAD clutch adjusting - R.H.

19

6540559

NUT actuating - W/Race-R.H. - See Note

19

6540558

NUT actuating - W/Race-L.H. - See Note

20

6500393

PIN clutch

21

8C512

SCREW

22

6E5

WASHER shakeproof

23

6502282

SPROCKET clutch

24

6502538

PLATE, CLUTCH outside clutch

25

PLATE NLA - CLUTCH - OUTSIDE - Order Ref. 6 & 21-24

26

6649871

LINING clutch - Was 6502424 - A
