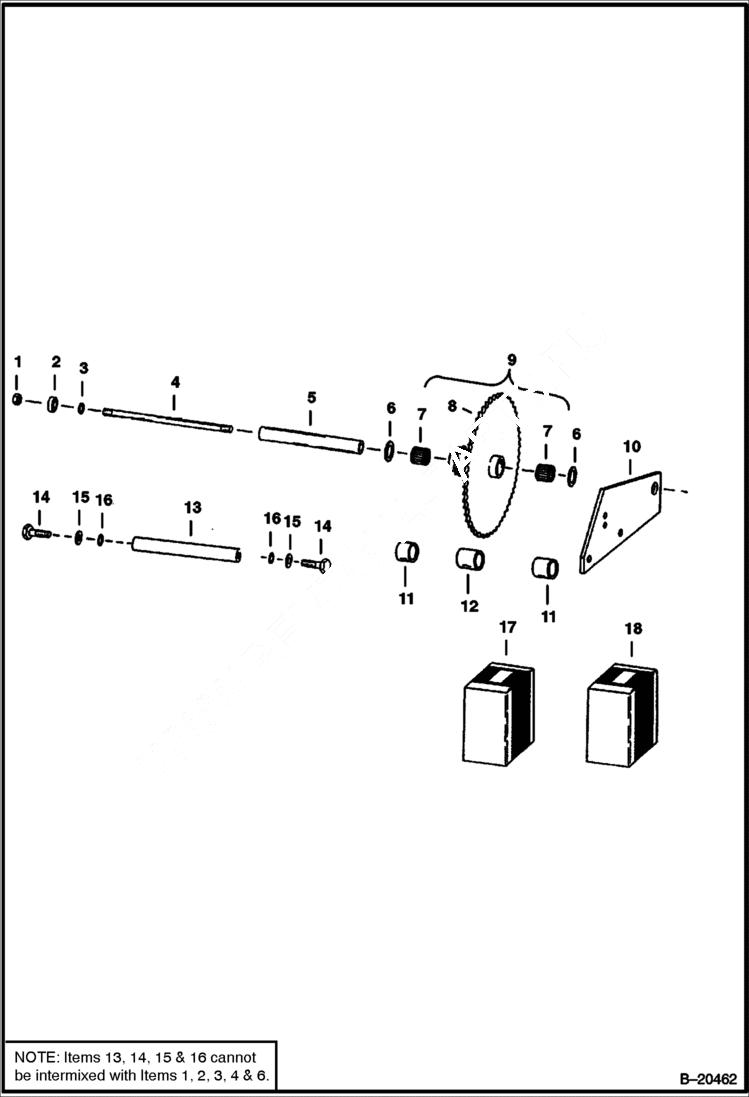

Запчасти Bobcat 300s LOWER JACKSHAFT (Right Side Illustrated) DRIVE TRAIN

1

59D10

NUT

2

SPACER NLA - Was 6500349 - A

3

25K40028

O RING 10

4

SHAFT NLA - Was 6500346 - A

5

TUBE NLA - bearing - Was 6500329 - A

6

226871

WSHR thrust

7

BEARING NLA - needle - Order Ref. 17

8

SPROCKET NLA - double - Order Ref. 18

9

SPROCKET ASSY. NLA - W/Ref. 7 & 8 - Order Ref. 18

10

PLATE NLA - divider - Was 6500925 - A

11

6553896

BUSHING Bronze

12

6553895

SPACER

13

TUBE NLA - bearing - threaded - Was 6562048 - A

14

17C1020

BOLT 5

15

27E10

WASHER

16

25K20026

O RING 10

17

6553960

KIT lower jackshaft brg.-Ref. 11 & 12

18

6554048

SPROCKET sprocket - Ref. 8, 11 & 12
