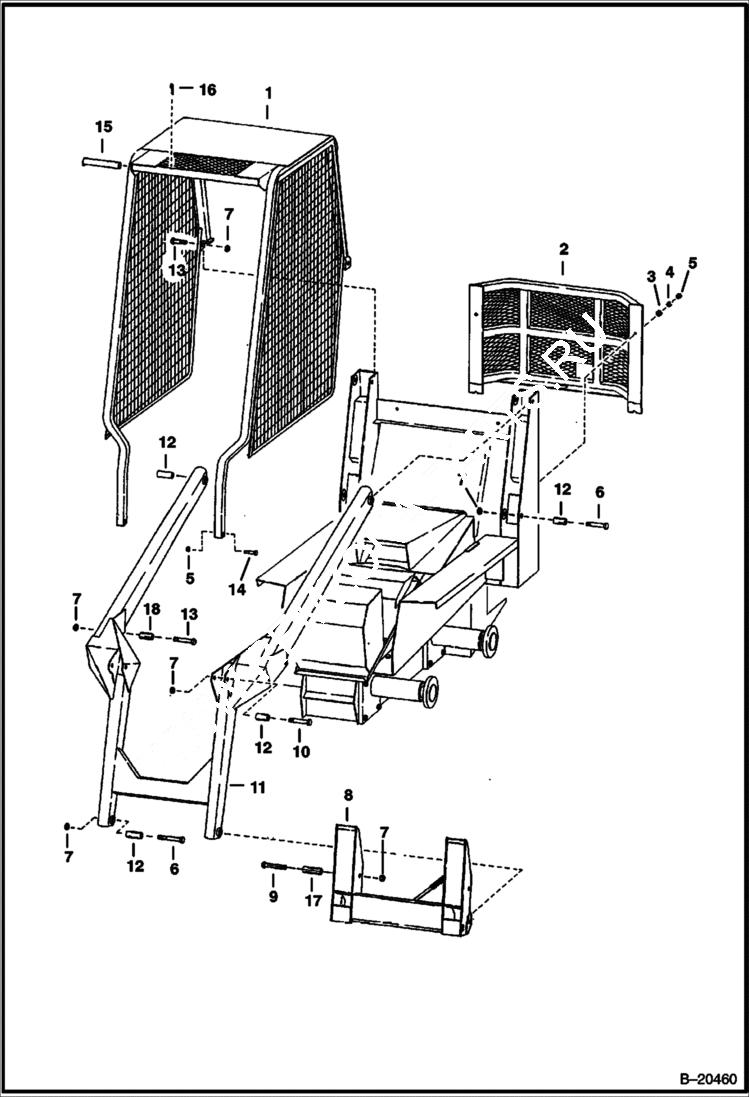

Запчасти Bobcat 300s MAIN FRAME & ATTACHING PARTS MAIN FRAME

1

OPERATOR CAB NLA - Was 6506714 - A

2

GRILL NLA - rear - Was 6506502 - A

3

25E17

WASHER 5 flat

4

4E6

WASHER lock

5

61D6

NUT 5

6

17C1056

BOLT

7

61D10

NUT

8

BOB-TACH See Illustration BOB-TACH/ B20461

9

17C1064

BOLT 5

10

17C1060

BOLT

11

6509785

LIFT ARM

12

6500821

BEARING

13

17C1052

BOLT

14

17C632

BOLT 5

15

6546272

BOOM stop

16

COTTERPIN NLA - Was 1F432 - A

17

6500822

BEARING

18

6500820

BEARING
