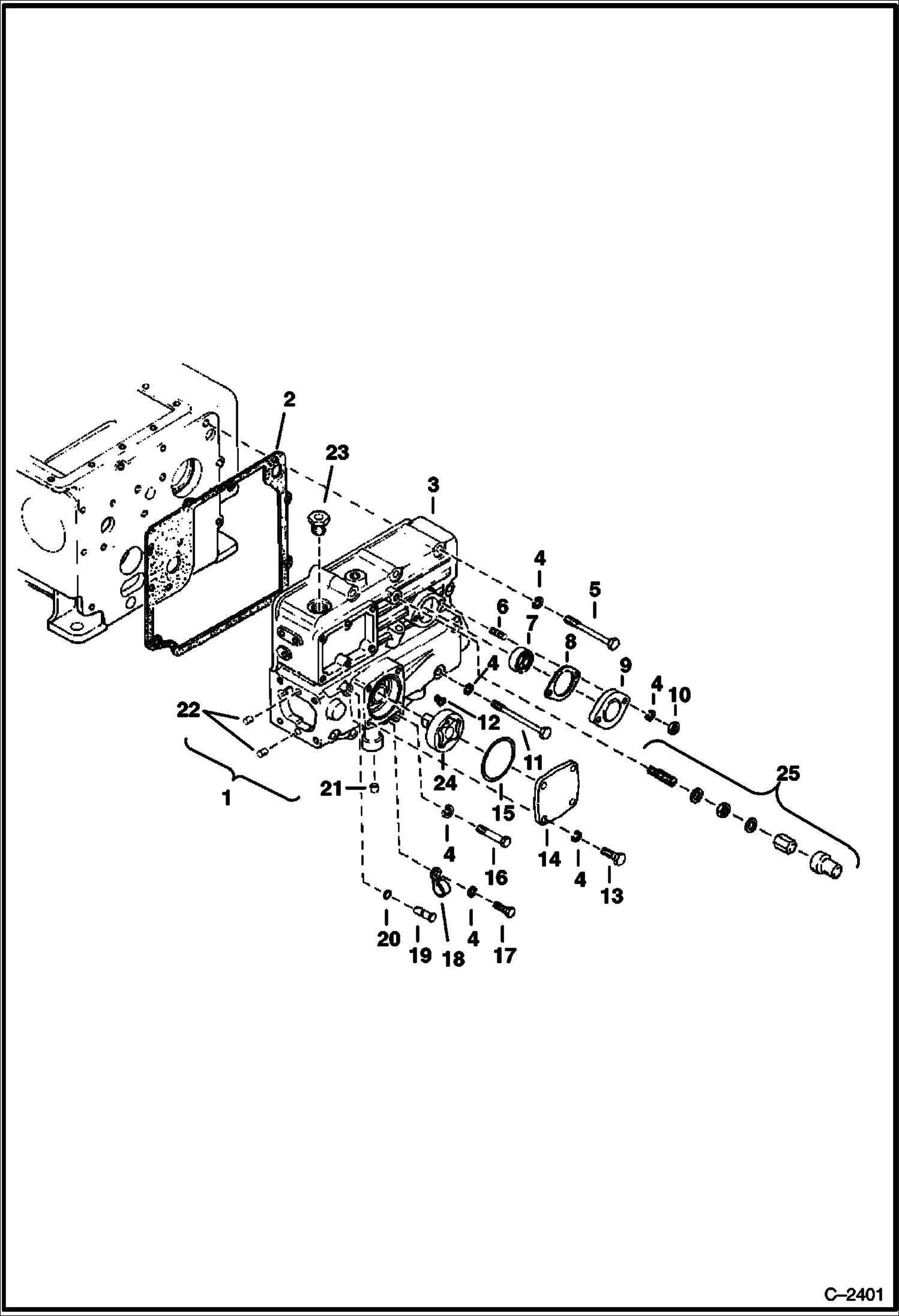

Запчасти Bobcat 300s GEARCASE POWER UNIT

1

3974071

GEAR CASE

2

6666820

GASKET See BTI147 Was 6514713 - A

3

HOUSING NSS

4

6EM60

WASHER, SPRING

5

4CM675

BOLT

6

3974085

STUD

7

3974079

SEAL

8

3974084

PACK

9

3974083

CAP

10

25DM6

NUT

11

BOLT NLA - Was 4CM00690B - A

12

3974076

PLUG

13

4CM618

BOLT

14

3974088

COVER

15

3974089

O RING

16

1CM635

BOLT

17

1CM612

BOLT Was 4CM612 - A

18

3974086

CLAMP

19

6652592

PIN Was 3974074B - A

20

3974075

O RING

21

6652591

PLUG Was 6630196 - A

22

3974078

PIN

23

3974073

SUPPORT

24

3974087

ROTOR

25

ASSEMBLY NSS
