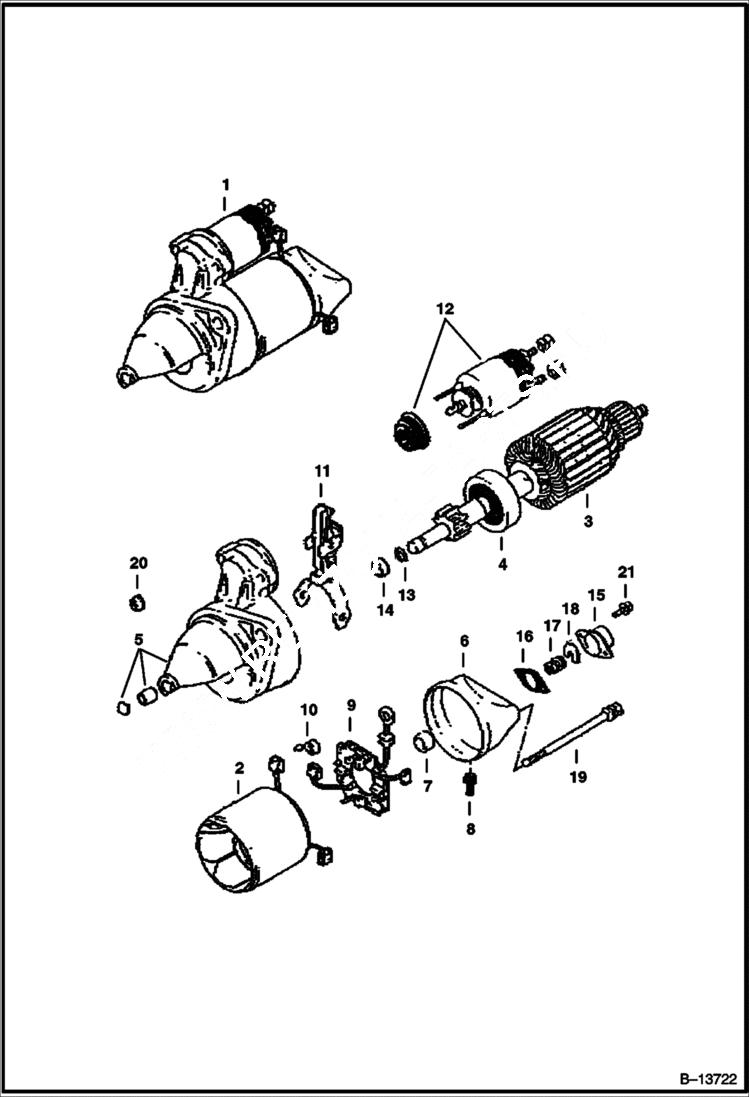

Запчасти Bobcat 300s STARTER (Engine S/N 85493 & Above) ELECTRICAL SYSTEM

1

3974246

STARTER W/Ref. 2-21

1

3974246REM

STARTER

2

3975356

FRAME & Coils

3

3975354

ARMATURE

4

3975355

DRIVE

5

3975349

HOUSING

6

6660281

FRAME W/Ref. 7 & 8

7

3975342

BUSHING

8

6660282

PIPE

9

3975357

HOLDER ASSY. W/Ref. 10

10

SPRING NLA - Was 3975339B - A

11

3975352

LEVER

12

3975353

SOLENOID

13

SNAP RING NLA - Was 3974343B - A

14

6660315

NUT

15

3975359

END CAP

16

3975344

GASKET

17

3975346

SPRING

18

3975358

CLIP

19

3975343

BOLT

20

3975363

NUT

21

3975237

SCREW W/Washer
