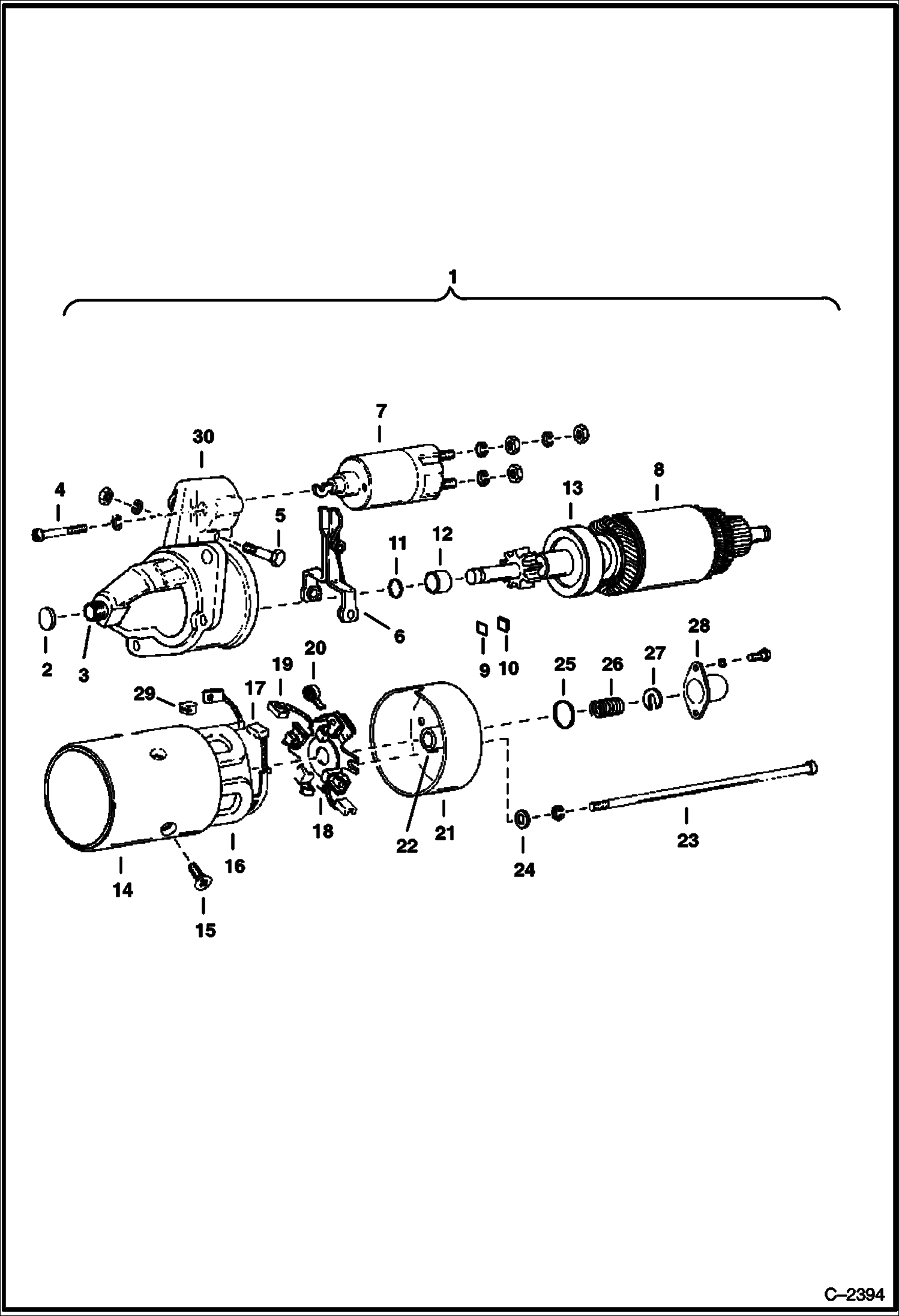

Запчасти Bobcat 300s STARTER (Engine S/N 85492 & Below) ELECTRICAL SYSTEM

1

STARTER NLA - Ref. 2-30 - Order 3974246B

2

CAP NLA - Was 3975345 - A

3

3975351

BUSHING Was 3974335B - A

4

3974336

SCREW

5

3974337

BOLT

6

3974338

LEVER drive

7

3974339

SWITCHER

8

3974340

ARMATURE

9

3974341

PLATE

10

3974342

WASHER insulator

11

SNAP RING NLA - Was 3974343B - A

12

6660315

NUT Was 3974344B - A

13

3974345

CLUTCH

14

3974346

FRAME

15

3974347

BOLT set (5)

16

COIL NLA - Field - Was 3974348 - A

17

BRUSH NLA - Was 3974349 - A

18

3974350

HOLDER brush

19

3974351

BRUSH

20

3974352

SPRING brush

21

FRAME NLA - End - Was 3974353 - A

22

3974354

BUSH

23

BOLT NLA - Through - Was 3974355 - A

24

3974356

WASHER

25

3974357

PACKING

26

3974358

SPRING

27

3974359

HOLDER spring

28

3974360

CAP

29

3974361

BUSHING insulator

30

FRAME NLA - drive end - Was 3974333B - A
