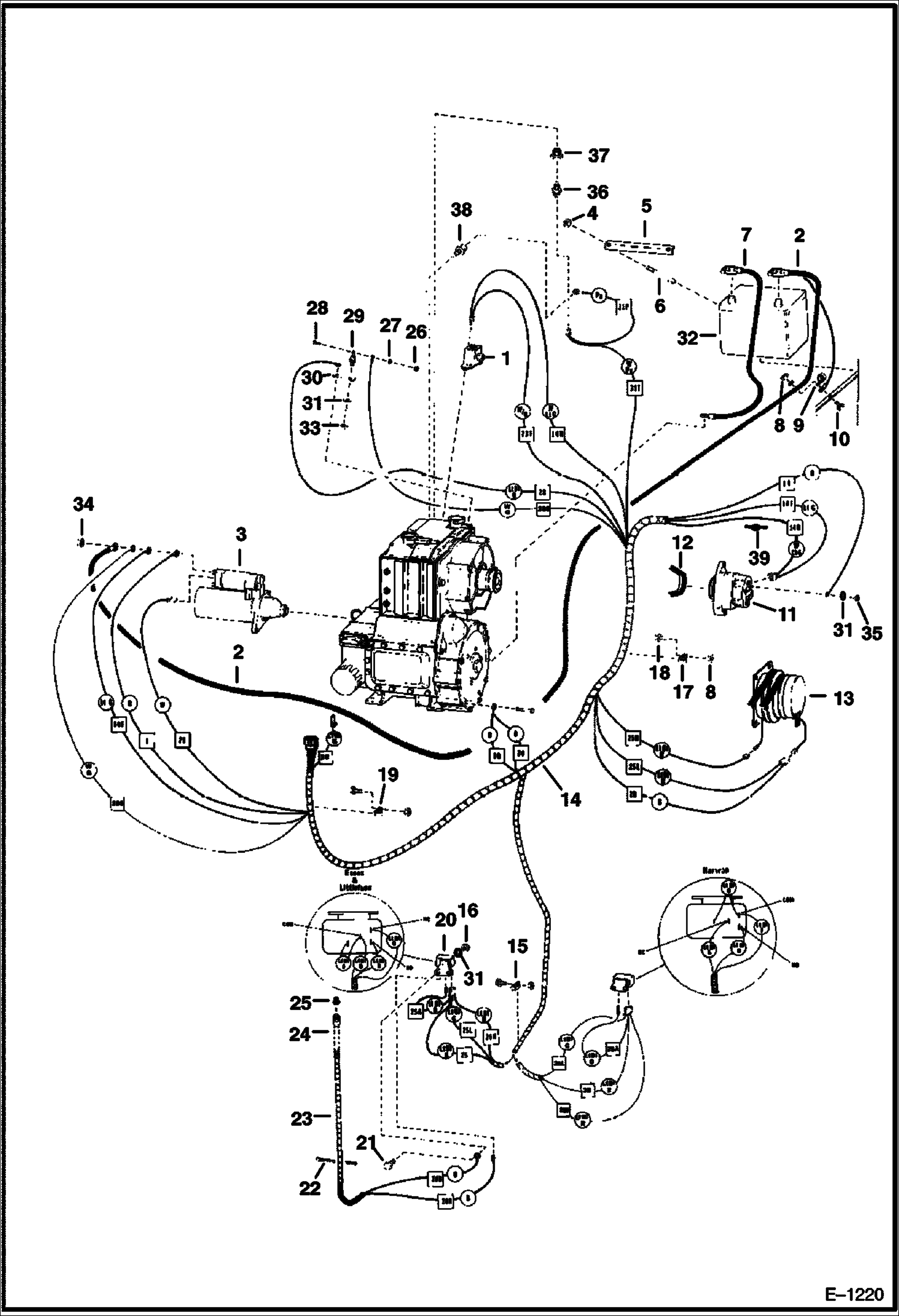

Запчасти Bobcat 300s ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

6558398

FUEL PUMP See Illustration FUEL SYSTEM/ D1453

2

CABLE NLA - Was 6558373

3

3974246

STARTER See Illustration STARTER/ B13722 See Illustration STARTER/ C2394

4

59D6

NUT

5

ANGLE NLA - Was 6558407 - A

6

6558406

ROD

7

6558372

CABLE battery (-)

8

61D5

NUT

9

31H19

CLIP

10

17C512

BOLT 5

11

ALTERNATOR See Illustration ALTERNATOR/ B20432 See Illustration ALTERNATOR/ B20433A See Illustration ALTERNATOR/ B20433

12

BELT NLA - alternator - Was 6558394 - A

13

CLUTCHES See Illustration ENGINE & ATTACHING PARTS/ E1218

14

HARNESS engine NLA - engine - Was 6558954 - A

14

HARNESS NLA - Was 6562065 - A

15

CLIP NLA - Was 6513498 - A

16

6512895

NUT

17

30H19

CLIP

18

17C508

BOLT

19

31H17

CLAMP

20

RELAY See BTI131 NLA - Was 6513197 - A

21

17C410

BOLT 10

22

6610510

TIE Was 1715312 - A

23

HARNESS NLA - 2-speed - Was 6559028 - A

24

6513482

SWITCH

25

6660205

SEAL Was 6513483 - A

26

12D8

NUT

27

12E8

WASHER

28

BOLT NLA - Was 85G000806B - A

29

6512963

DIODE

30

BAR NLA - bus- Was 6560011 - A

31

6E4

WASHER 10

32

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

32

6630154

CAP gang - Danger

32

6630155

CAP gang - Poison

32

6514898

CAP Tilt-Tite

33

62D4

NUT

34

4DM8

NUT

35

1DM6

NUT Was 4DM6 - A

35

12D12

NUT

36

6630821

SWITCH water temp.

37

19F3

BUSHING

38

6969775

SWITCH, OIL PRESSURE oil pressure - Was 6652576 - A

39

3675725

DIODE
