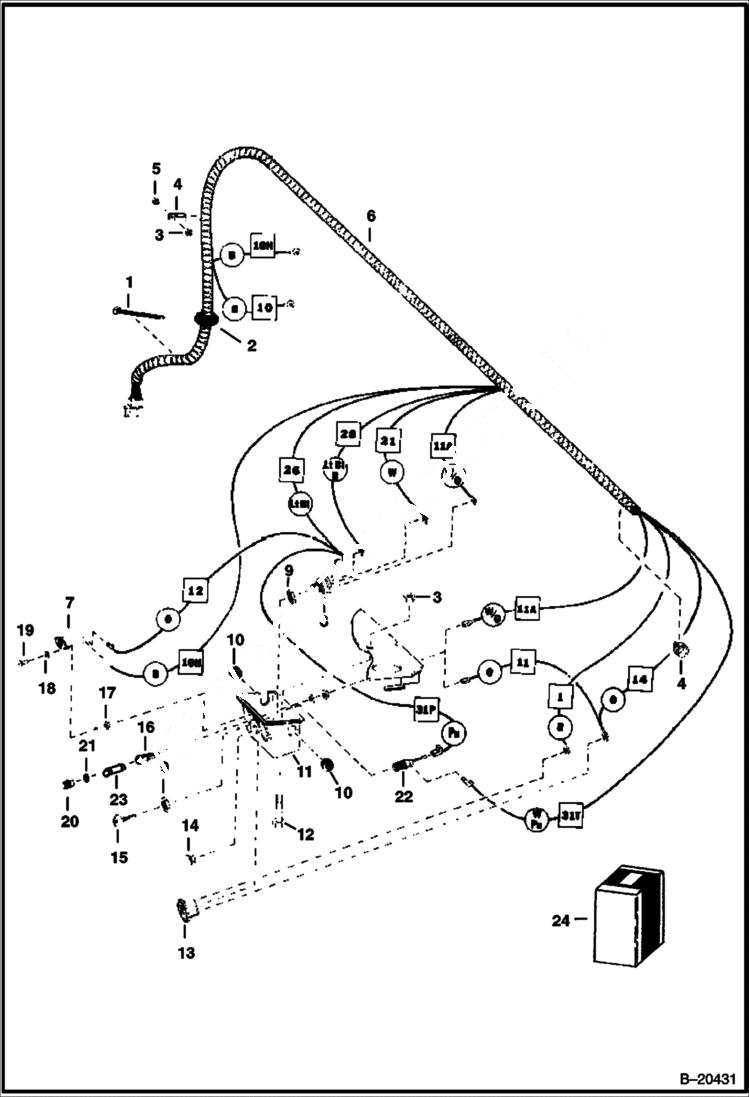

Запчасти Bobcat 300s CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6610510

TIE Was 1715312 - A

2

6553653

GROMMET

3

61D5

NUT

4

30H34

CLAMP

5

10C512

BOLT Was 6553808 - A

6

HARNESS NLA - Was 6559540 - A

6

HARNESS NLA - Was 6562058 - A

7

6664886

HOURMETER Was 6631657 - A

8

SWITCH NLA - ignition - Was 6519592 - A

8

6665606

SWITCH

9

6598721

NUT For NLA/6519592 Switch

9

6674202

NUT For 6665606 Switch

10

6553651

GROMMET

11

PANEL NLA - Instrument - Was 6560016 - A

12

17C564

BOLT

13

6512807

GAUGE ammeter

14

6513640

PLUG

15

6512809

KEY For 6519592

15

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

15

6693241

KEY 10 ignition - single key W/O ring

16

6513469

HOLDER fuse

17

12D6

NUT 10

18

12E6

WASHER

19

85G608

SCREW

20

6514642

CAP

21

6514643

GASKET

22

LIGHT NLA - transmission temp - Was 6515525 - A

23

1319451

FUSE 5

24

6724282

SWITCH KIT Ref. 8 & 15
