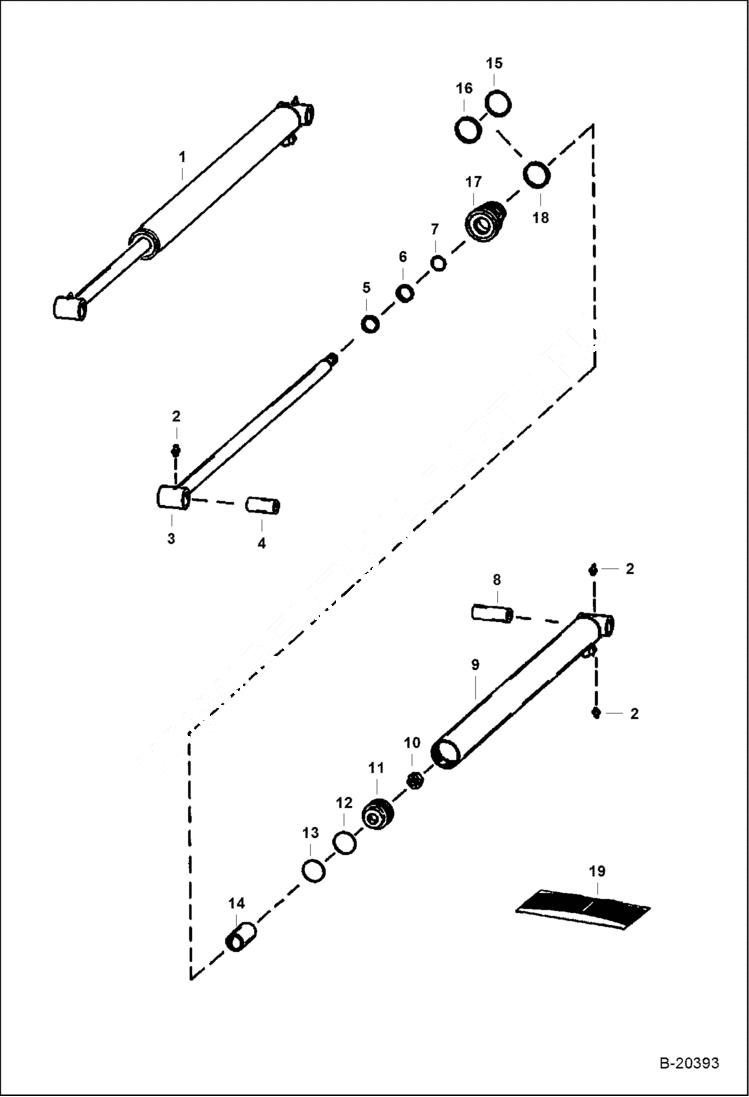

Запчасти Bobcat 300s LIFT CYLINDER (W/Weld on Tube) HYDRAULIC SYSTEM

1

CYLINDER NLA - lift - Ref. 2-17 - Order 6587789 - Was 6500768 - A

2

10H25

FITTING, GREASE 5

3

6592903

ROD Piston

4

6500820

BEARING

5

1657083

WIPER ROD wiper - Was NSS - D

6

6667323

SEAL U-cup - Was 6704243 - B

7

O-RING NSS

8

6500821

BEARING

9

CASE NLA - Order 6592989 & 6529382

10

92D12

NUT Was 86D000012B - B

11

6558196

PISTON

12

54K30118

O-RING Was 25K-30118 - B

13

6516231

SEAL Was NSS - D

14

6500892

SPACER Was NSS - D

15

54K40124

O-RING Was 25K-40124 - B

16

73K224

RING back-up - Was NSS - D

17

6504933

HEAD

18

7008781

SEAL, QUAD

19

7137771

SEAL KIT Ref. 5-7, 10 & 12, 13, & 18 - Was 6803472 - A
