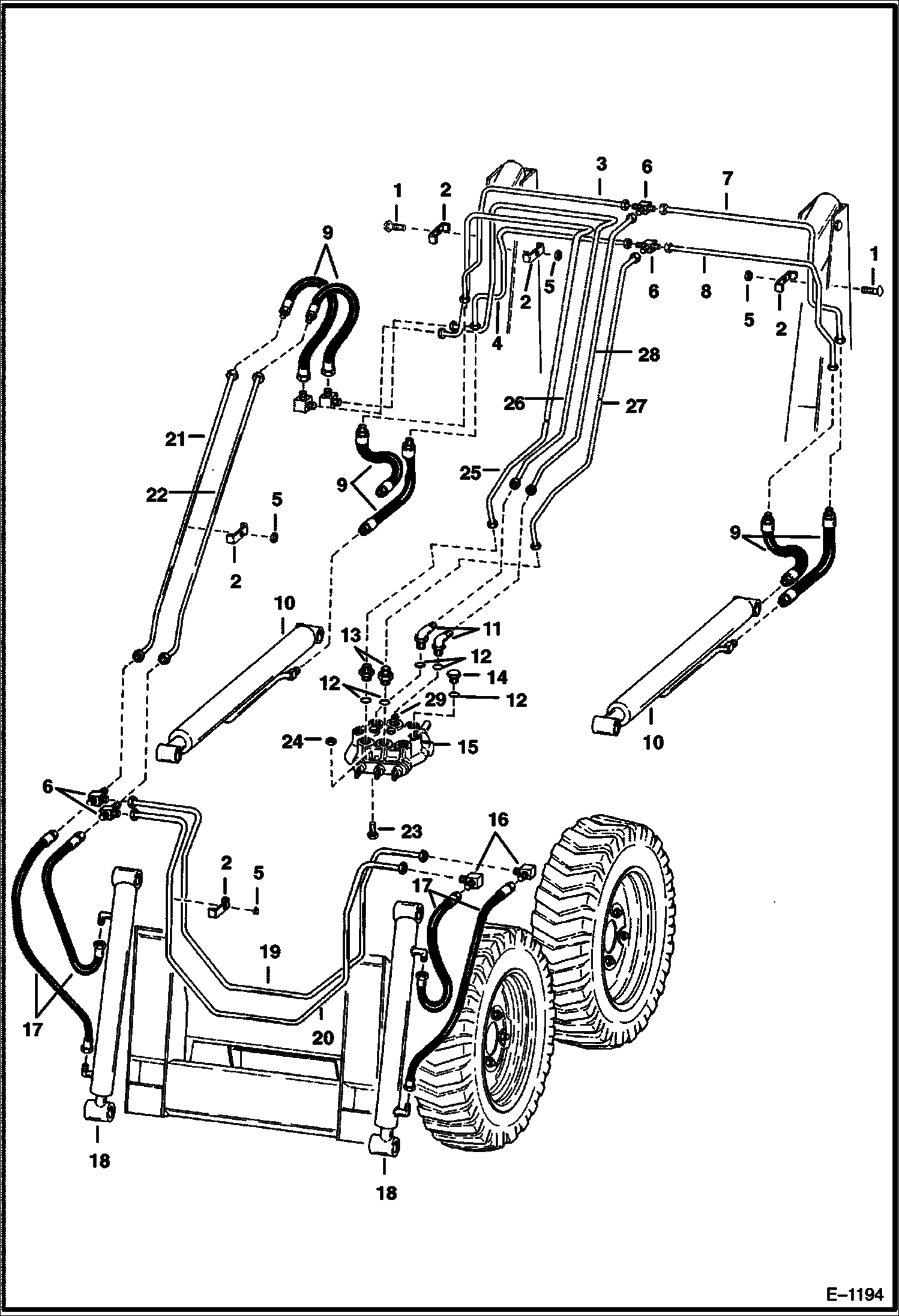

Запчасти Bobcat 300s LIFT & TILT CYLINDER CIRCUITRY HYDRAULIC SYSTEM

1

BOLT NLA - Was 7C000626B - A

2

6500989

CLAMP tube

3

6555664

TUBE

4

6555665

TUBE

5

81D6

NUT

6

10K5

TEE

7

6555667

TUBE

8

6555666

TUBE

9

6500832

HOSE

10

CYLINDER See Illustration LIFT CYLINDER/ B17948 See Illustration LIFT CYLINDER/ B20393

11

1300059

ELBOW W/Ref. 12

12

79K8

O RING 10

13

743108

FITTING W/Ref. 12

14

24K6

FITTING W/Ref. 12

15

6557603

VALVE See Illustration HYDRAULIC VALVE/ B20391

16

77F5

FITTING

17

6542521

HOSE

18

CYLINDER See Illustration TILT CYLINDER/ C1456 NLA - tilt - Was 6560924 - A

19

6555629

TUBE

20

6555630

TUBE

21

6555624

TUBE

22

6555625

TUBE

23

17C532

BOLT 5

24

61D5

NUT

25

6555721

TUBE

26

6555722

TUBE

27

6555670

TUBE

28

6555671

TUBE

29

ORIFICE NLA - .123/.130 - Was 6560940 - A
