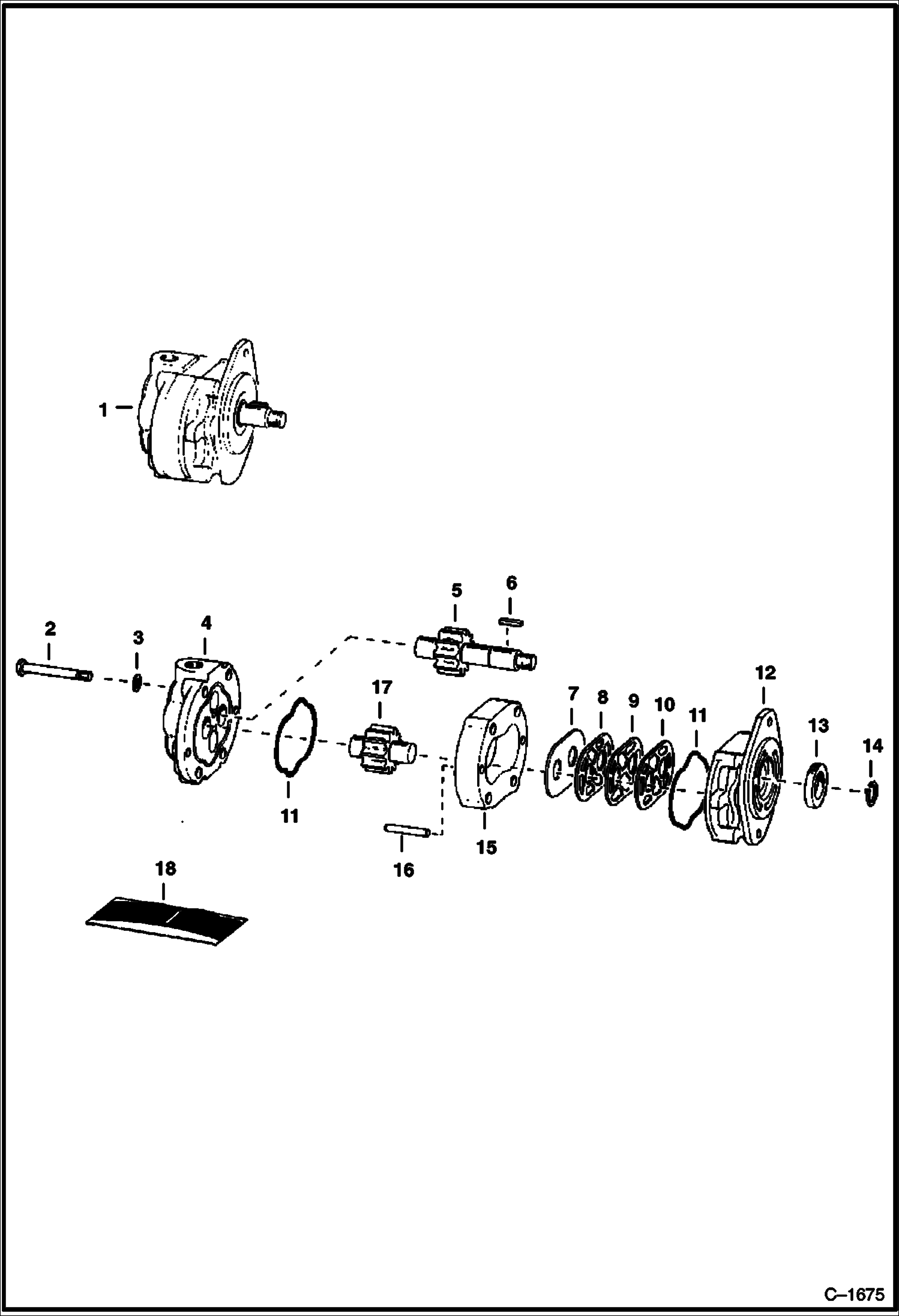

Запчасти Bobcat 300s HYDRAULIC PUMP (Parker) HYDRAULIC SYSTEM

1

PUMP NLA - Hydraulic - Order 6508434

2

17C536

BOLT

3

WASHER NLA - Was 998626B - A

4

6519959

COVER Back

5

GEAR NLA - Drive

6

KEY NLA - Was 7J1010 - A

7

PLATE NSS - Wear

8

SHIELD NSS - Heat

9

GASKET NSS

10

V-SEAL NSS

11

O-RING NSS

12

6519958

COVER Front

13

SEAL, NSS - Rotary

14

6511959

SNAP RING

15

BODY NLA

16

DOWEL PIN NLA

17

GEAR NLA - Driven

18

990990

SEAL KIT Seal Repair - Ref. 7-11, 13
