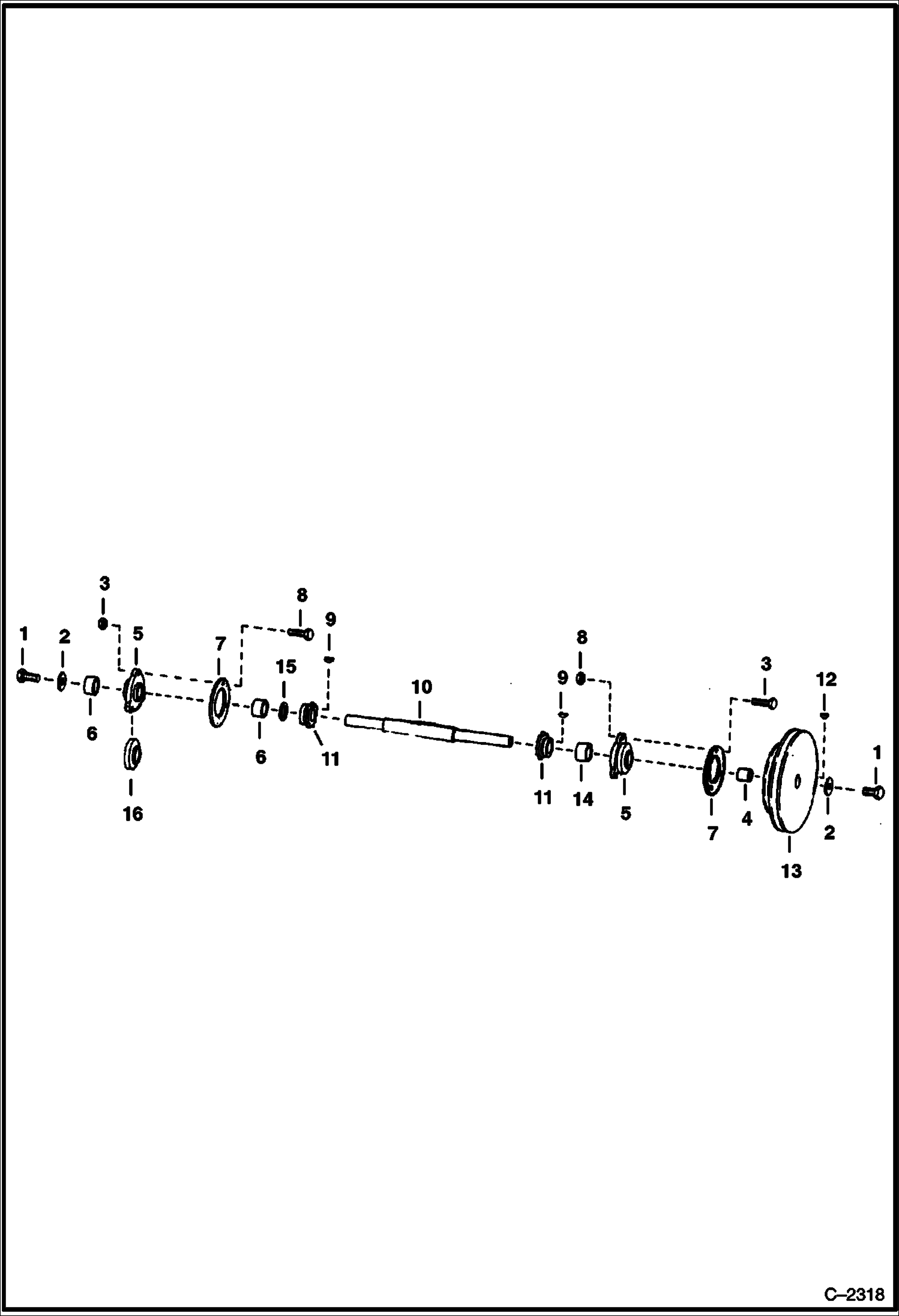

Запчасти Bobcat 300s UPPER JACKSHAFT (S/N 11323 & Below) DRIVE TRAIN

1

17C816

BOLT

2

6558268

WASHER

3

57D6

NUT 5

4

6555499

BUSHING

5

BEARING ASSY NLA - Order Ref. 16 - Was 6552211 - A

6

6552181

SPACER

7

6500758

GASKET

8

17C620

BOLT

9

5J806

KEY

10

6555495

JACKSHAFT See BTI148 upper

11

SPROCKET NLA - Was 6504461 - A

12

KEY NLA - Was 7J3202 - A

13

PULLEY NLA - driven - Was 6558186 - A

14

6552182

SPACER

15

6555918

SHIM

15

662249

SHIM

16

6671906

BEARING insert into Ref. 5 flange
