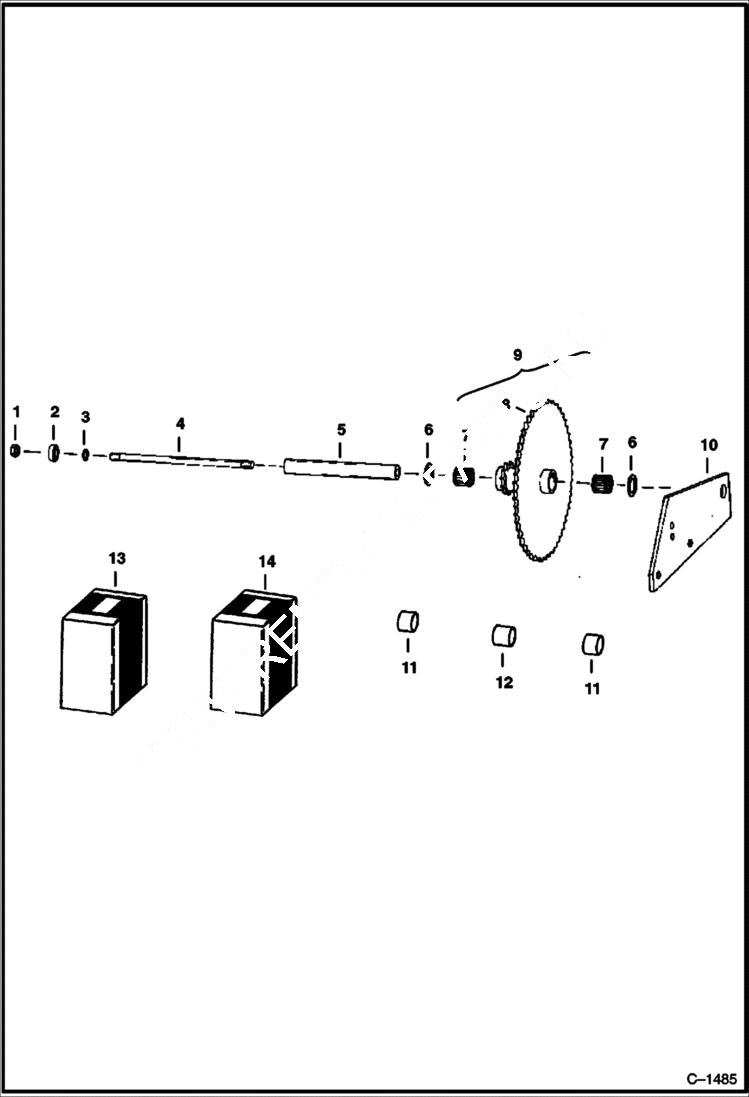

Запчасти Bobcat 300s LOWER JACKSHAFT (Right Side Illustrated - S/N 11999 & Below) DRIVE TRAIN

1

59D10

NUT

2

SPACER NLA - Was 6500349 - A

3

25K40028

O RING 10

4

SHAFT NLA - Was 6500346 - A

5

TUBE NLA - bearing - Was 6500329 - A

6

226871

WSHR Thrust

7

BEARING NLA - Needle - Order Ref. 13

8

SPROCKET NLA - Double - Order Ref. 14

9

SPROCKET ASSY NLA - W/Ref. 7 & 8 - Order Ref. 14

10

PLATE NLA - divider - Was 6500925 - A

11

6553896

BUSHING Bronze

12

6553895

SPACER

13

6553960

KIT Lower Jackshaft Bearing - Ref. 11 & 12

14

6554048

SPROCKET See Illustration LOWER JACKSHAFT/ B3610
