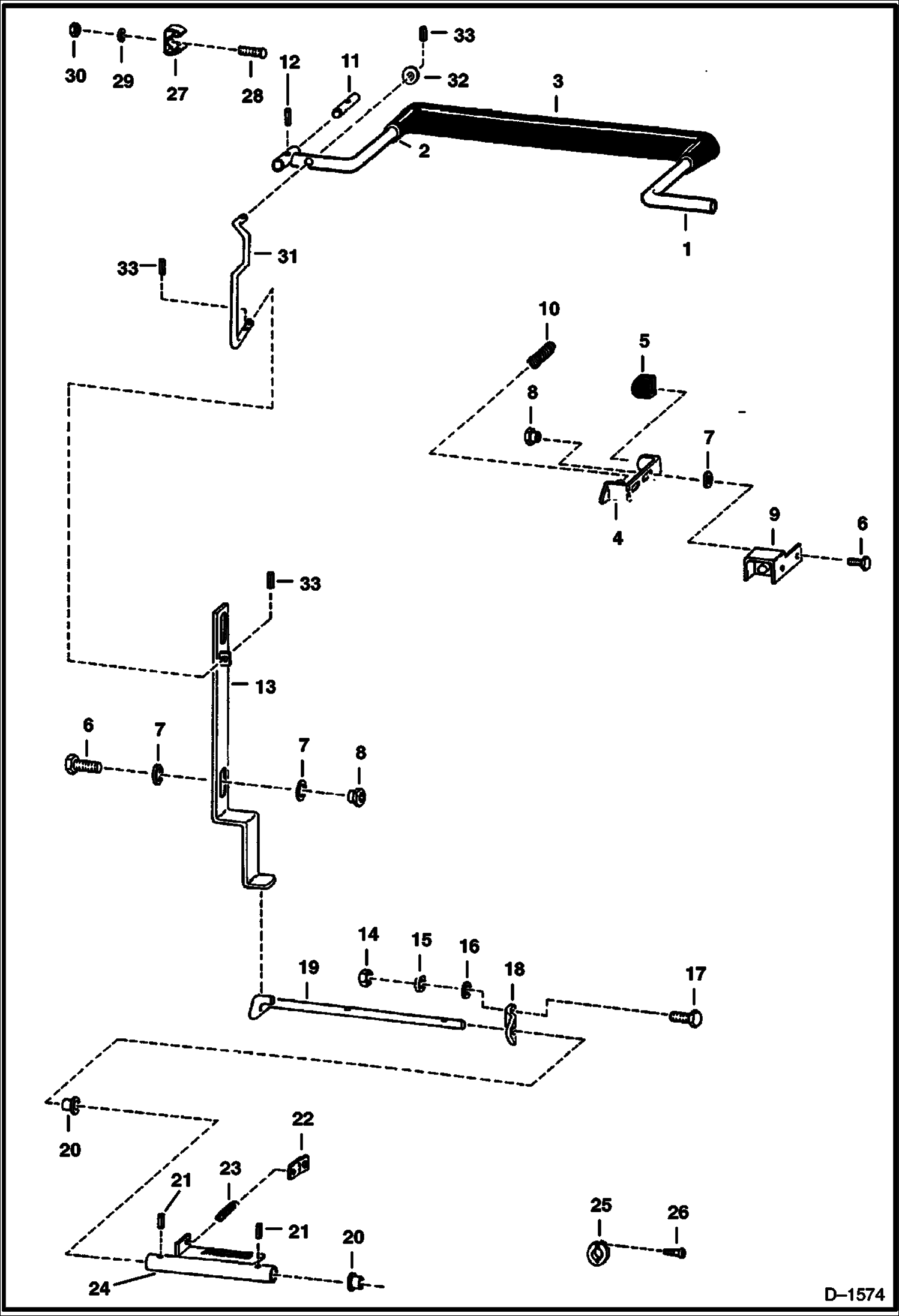

Запчасти Bobcat 300s SEAT BAR MAIN FRAME

1

6591936

SEAT BAR

2

PAD NLA - for old style seat bar - Was 6591843 - A

3

COVER NLA - for old style seat bar - Was 6591844 - A

4

LATCH NLA - Was 6591742 - A

5

6519645

GRIP Was 6591842 - A

6

17C612

BOLT 5

7

WASHER NLA - Nylon - Was 6591887 - A

8

6559479

NUT

9

BRACKET NLA - Was 6591743 - A

10

6702430

SPRING, COMPRESSION Was 6563149 - C

11

PIN NLA - Was 6591734 - A

12

209968

PIN

13

STRAP NLA - Was 6591736 - A

14

61D4

NUT 5

15

4E4

WASHER

16

25E14

WSHR

17

17C416

BOLT

18

BRACKET NLA - Was 6591731 - A

19

ROD NLA - Was 6591738 - A

20

1300213

BUSHING

21

ROLL PIN NLA - Was 774508B - A

22

BRACKET NLA - Was 6591867 - A

23

SPRING NLA - Was 6559219 - A

24

PLATE NLA - stop - Was 6591729 - A

25

COLLAR NLA - Was 6591735 - A

26

21G810

SCREW

27

CLIP NLA - Was 6591817 - A

28

87G806

SCREW

29

12E8

WASHER

30

12D8

NUT

31

ROD NLA - Was 6591883 - A

32

25E17

WASHER 5

33

301939

PIN
