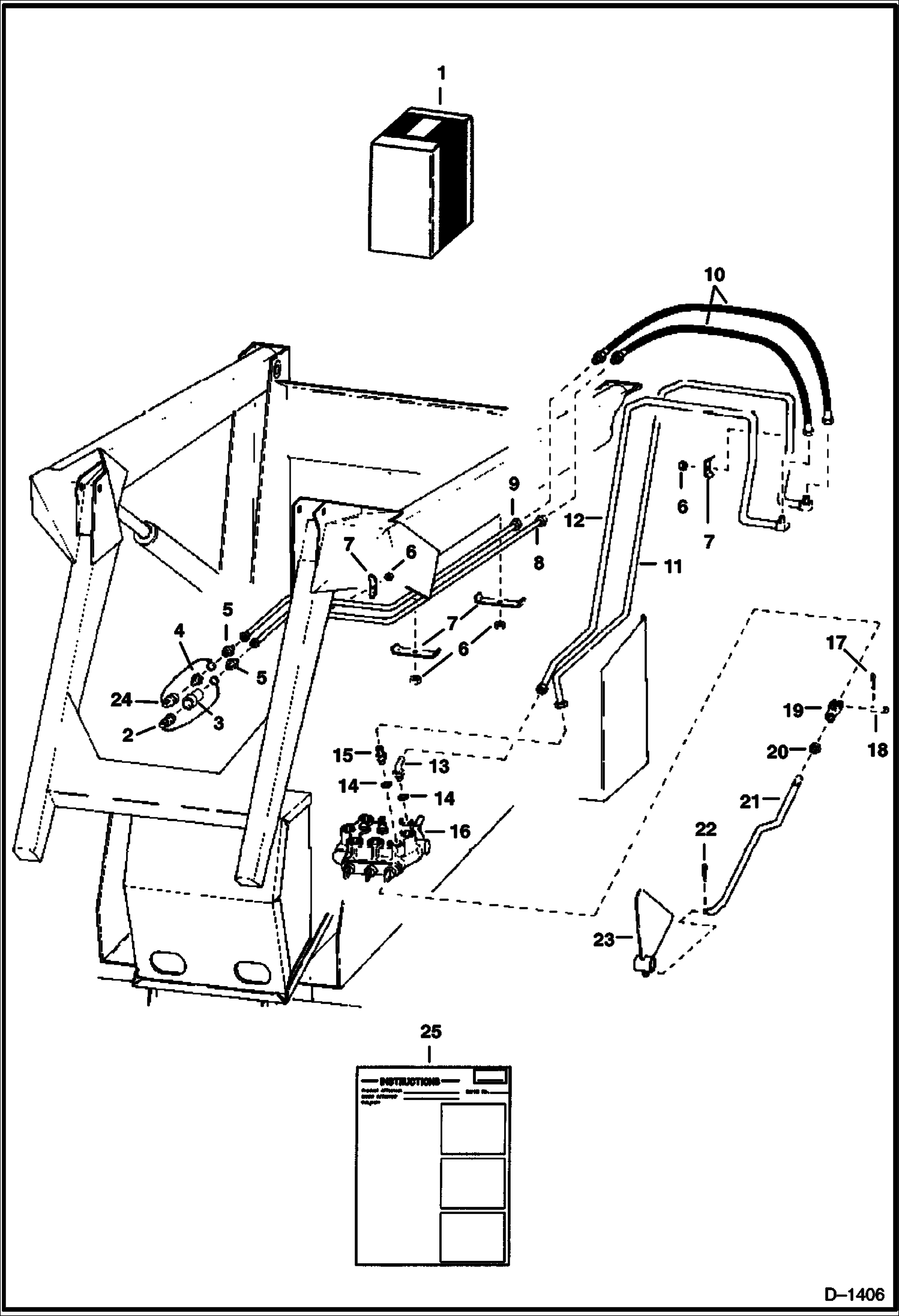

Запчасти Bobcat 300s AUXILIARY HYDRAULIC KIT ACCESSORIES & OPTIONS

1

6558010

KIT Aux. Hyd. - Ref. 2-15 & 17-25

2

3679000

PLUG-DUST

3

6519317

QUICK COUPLER Female

3

58K116

O RING 10

4

6519318

QUICK COUPLER Male

5

712203

UNION

6

81D6

NUT

7

6500989

CLAMP Tube

8

TUBE NLA - Was 6557967 - A

9

TUBE NLA - Was 6557968 - A

10

6500832

HOSE

11

TUBE NLA - Was 6557966 - A

12

TUBE NLA - Was 6557965 - A

13

1300059

ELBOW W/Ref. 14

14

79K8

O RING 10

15

743108

FITTING W/Ref. 14

16

VALVE See Illustration HYDRAULIC VALVE/ B20392 See Illustration HYDRAULIC VALVE/ B20391

17

1F308

PIN, COTTER

18

6505103

PIN

19

6515635

YOKE

20

8D8

NUT

21

6555704

ROD

22

1318565

COTTER PIN

23

6555706

PEDAL

24

3679001

CAP

25

6556204

INSTRUCTIONS
