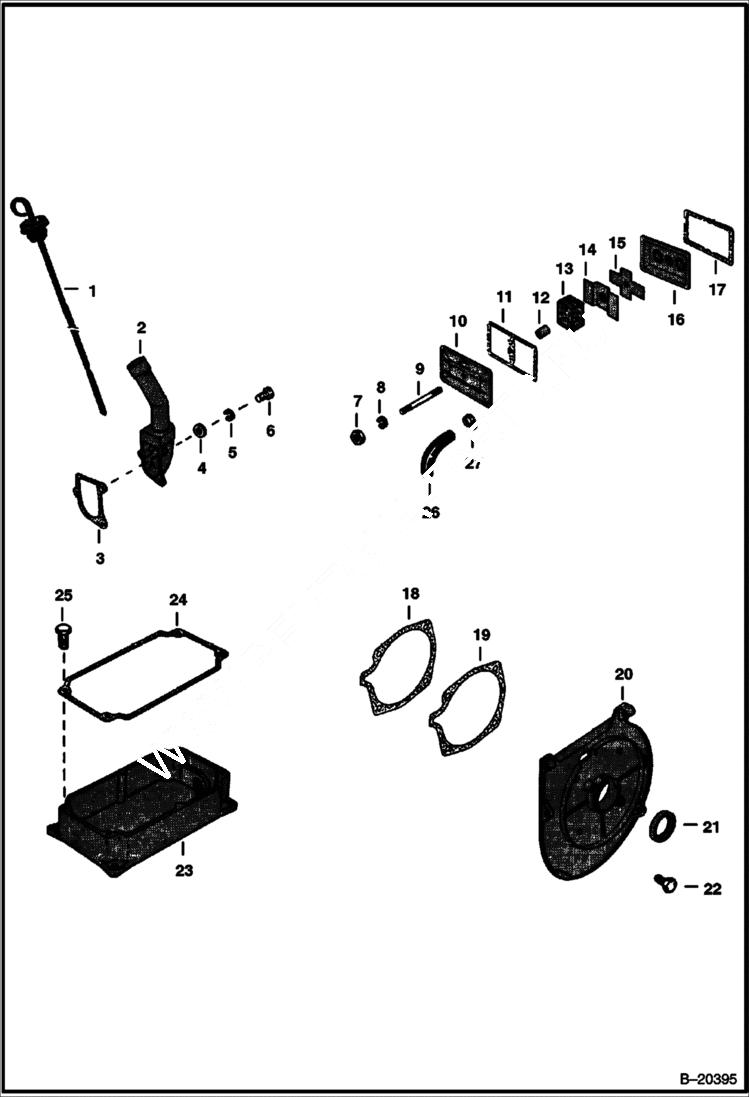

Запчасти Bobcat 300s GEAR COVER & OIL BASE GROUP POWER UNIT

1

6513230

DIPSTICK Oil

2

6513229

TUBE Oil fill

3

6518842

GASKET Oil fill tube

4

6518102

WASHER Flat

5

15E10

WASHER Lock

6

BOLT NLA - socket head - Was 35G1007 - A

7

61D4

NUT 5

8

4E4

WASHER Lock

9

6518915

STUD Breather

10

6513232

COVER Valve

11

6518888

GASKET Valve cover

12

6518874

SEAL Breather

13

6518896

FILTER Breather

14

6518895

BAFFLE Breather

15

6518887

REED Breather

16

6518908

PLATE Breather

17

6518970

GASKET Breather

18

6518891

GASKET Gear cover plate

19

6518912

GASKET Bearing plate

20

6513238

COVER Bearing

21

6518956

SEAL Front oil

22

17C616

BOLT 5

23

6518894

BASE Oil pan

24

6518890

GASKET Oil pan

25

BOLT NLA - Was 5C000616B - A

26

6513266

HOSE

27

17H11

CLAMP
