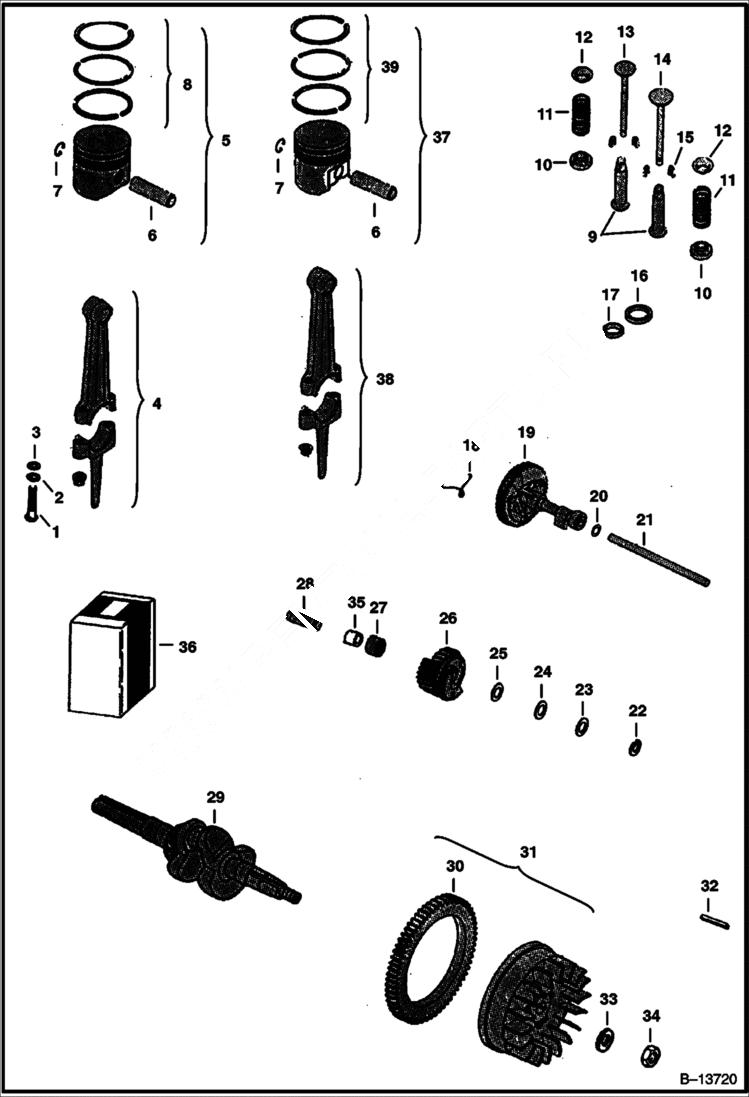

Запчасти Bobcat 300s INTERNAL PARTS POWER UNIT

1

BOLT NSS

2

4E6

WASHER

3

890414

WASHER

4

6513249

ROD Connecting - Ref. 1-3 - Use W/Ref. 5

4

6513250

ROD Connecting - .010 - Use W/Ref. 5

5

6632355

PISTON Std. - W/Ref. 6-8 - Use W/Ref. 4

5

6632356

PISTON .003 - One Piston - W/Ref. 6-8 - Use W/Ref. 4

5

6632357

PISTON .010 - One Piston - W/Ref. 6-8 - Use W/Ref. 4

5

6632358

PISTON .020 - One Piston - W/Ref. 6-8 - Use W/Ref. 4

5

PISTON NLA - .030 - One Piston - W/Ref. 6-8 - Use W/Ref. 4 - Was 6632359 - A

6

PIN NSS - Was 6518914 - A

7

6513949

RETAINER

8

6513256

RINGS Std. - .003 - Use W/Ref. 5

8

6513257

RINGS .010 - Use W/Ref. 5

8

6513258

RINGS .020 - Use W/Ref. 5

8

6513259

RINGS .030 - Use W/Ref. 5

9

6518901

TAPPET

10

6632091

ROTATOR Was 6518870 - A

11

6518898

SPRING

12

6518883

RETAINER

13

6519668

VALVE Exhaust

14

6518906

VALVE Intake

15

6518861

KEY RETAINER

16

6518872

INSERT Intake

17

6518871

INSERT Exhaust

18

SPRING NLA - actuating - Was 6510627 - A

19

6513225

CAMSHAFT

20

6518863

SPACER Camshaft - .005

20

6518864

SPACER Camshaft - .010

21

6518889

PIN Camshaft

22

6518955

SNAP RING

23

SPACER NSS

24

SPACER NSS - 0.005

25

SPACER NSS - 0.01

26

6518827

GEAR W/Ref. 27

27

6518826

BEARING .6870 - .6875 O.D.

27

6630175

BEARING .6825 - .6828 O.D.

28

6518824

SHAFT

29

6513240

CRANKSHAFT

30

RING GEAR NSS - Order Ref. 31

31

6513268

FLYWHEEL W/Ref. 30

32

KEY NLA - Was 7J2106 - A

33

WASHER NLA - Was 6518953 - A

34

111592

NUT

35

SPACER NSS

36

6511796

SPACER KIT Ref. 22-25 & 35

37

PISTON ASSY. NLA - Std. - Use W/Ref. 38 - Was 6661137 - A

37

6661138

PISTON ASSY. .003 - Use W/Ref. 38

37

6661139

PISTON ASSY. .010 - Use W/Ref. 38

37

6661140

PISTON ASSY. .020 - Use W/Ref. 38

37

6661141

PISTON ASSY. .030 - Use W/Ref. 38

38

6661115

ROD Std. - Use W/Ref. 37

38

6661128

ROD .010 - Use W/Ref. 37

39

6661142

RING SET Std. - Use W/Ref. 37

39

6661143

RING SET .010 - Use W/Ref. 37

39

6661144

RING SET .020 - Use W/Ref. 37

39

RING SET NLA - .030 - use W/Ref. 37 - Was 6661145 - A
