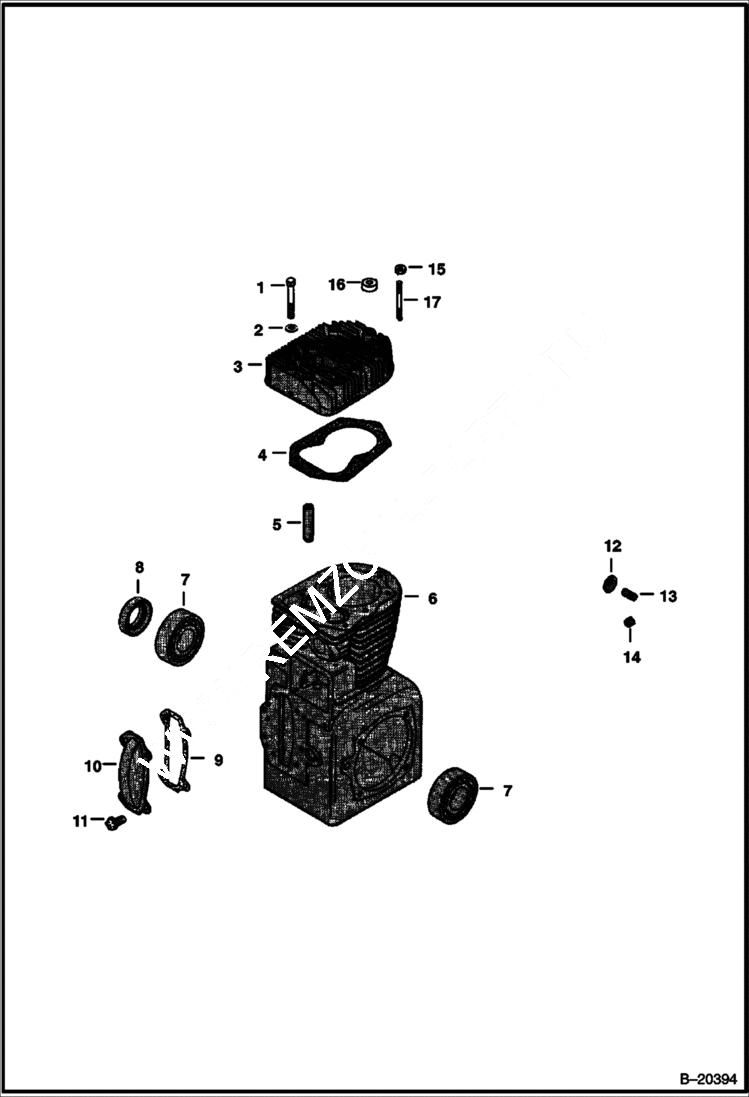

Запчасти Bobcat 300s CYLINDER BLOCK GROUP POWER UNIT

1

17C624

BOLT 5

2

214765

WASHER

3

6513241

HEAD Cylinder

4

6513242

GASKET Head

5

6518882

VALVE GUIDE Valve

6

BLOCK See Illustration ENGINE/ B1316 NLA

7

743439

BEARING

8

6518957

SEAL

9

6518884

GASKET

10

6518885

COVER Camshaft

11

BOLT NLA - Was 5C000616B - A

12

6518971

PLUG

13

6518897

SHAFT Governor

14

BEARING NLA

15

61D6

NUT 5

16

6513222

SPACER

17

6513228

STUD
