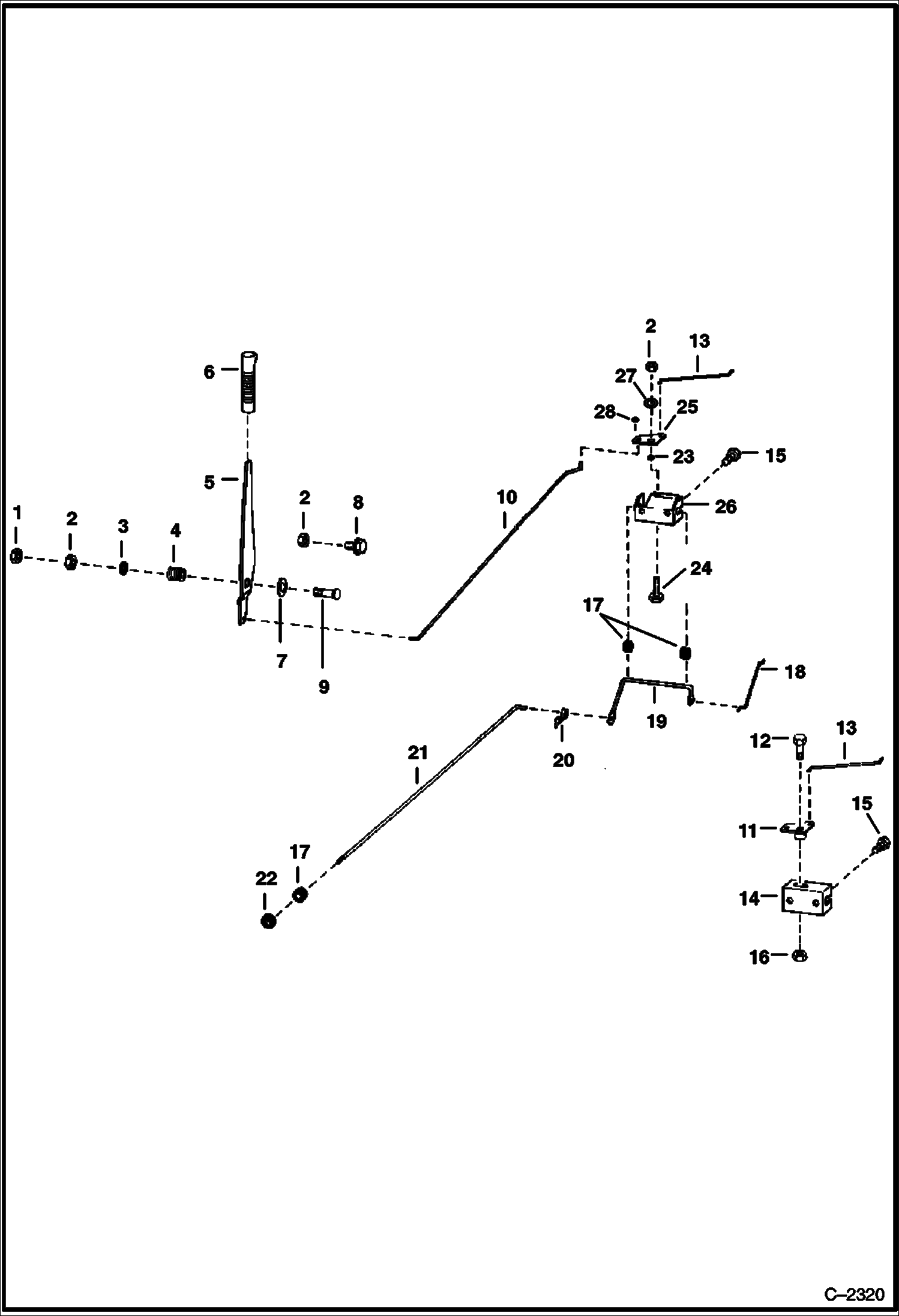

Запчасти Bobcat 300s CHOKE & THROTTLE POWER UNIT

1

7D6

NUT

2

6512893

NUT

3

6505623

WASHER

4

6704453

SPRING Was 6503387 - A

5

6555550

LEVER

6

6553557

GRIP

7

6562127

WASHER

8

35C608

BOLT Was 356608 - A

9

SCREW NLA - Was 7C636 - A

10

ROD NLA - throttle - Was 6557615 - A

10

ROD NLA - Was 6560441 - A

11

PIVOT NLA - Was 6557614 - A

12

1312710

SCREW

13

6552770

ROD

13

ROD NLA - Was 6559495 - A

14

6552767

BRACKET

15

17C408

BOLT

16

61D5

NUT

17

6519484

GROMMET

18

6552764

ROD

19

ROD NLA - Was 6557617 - A

20

6519480

CLIP

21

6559497

ROD Choke

22

6519552

KNOB

23

6544654

BUSHING

24

17C616

BOLT 5

25

PIVOT NLA - Was 6559494 - A

26

BRACKET NLA - Was 6559496 - A

27

6512913

WASHER

28

PUSH NUT NLA - Was 6519255 - A
