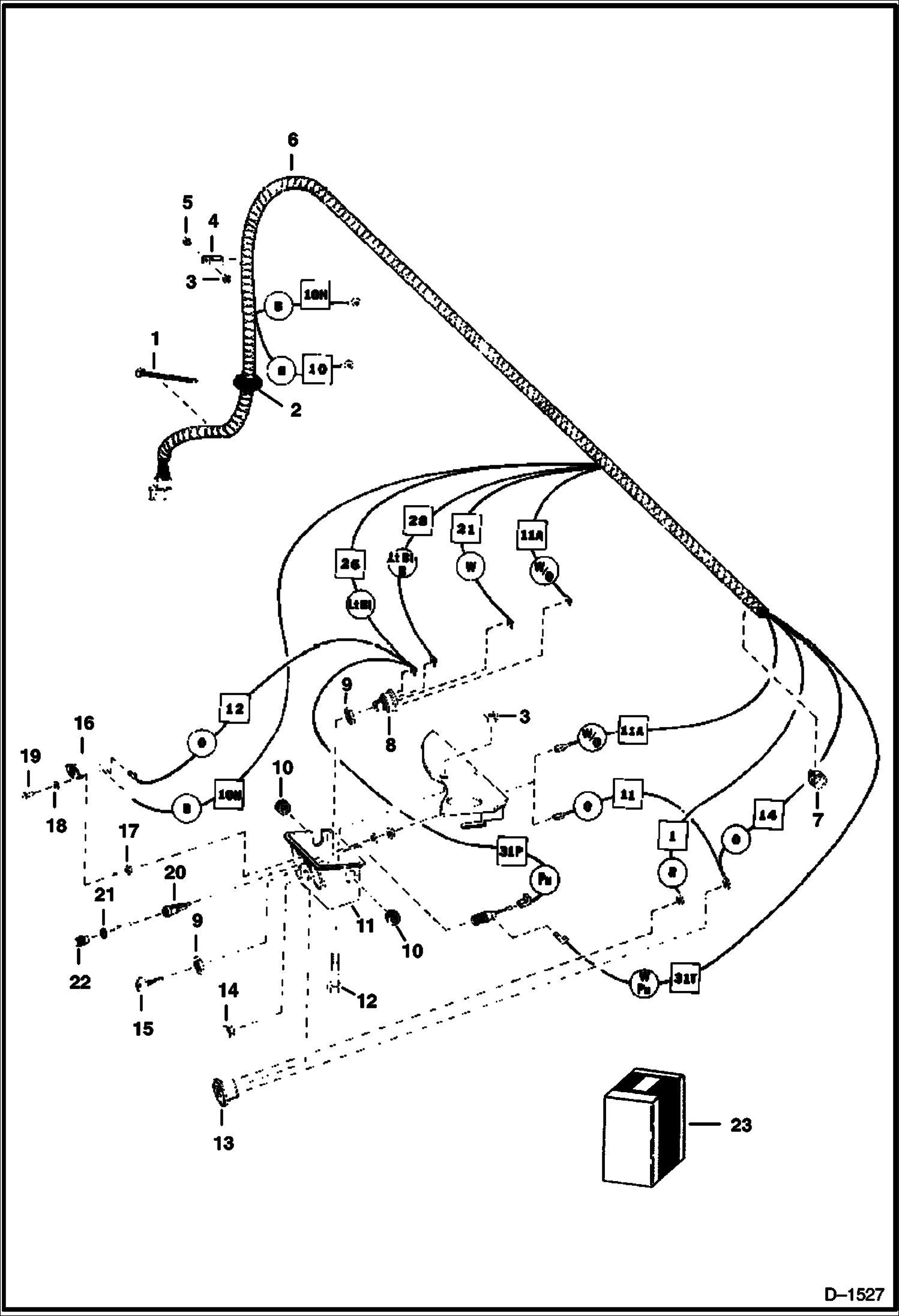

Запчасти Bobcat 300s CAB ELECTRICAL CIRCUITRY (S/N 16152 & Above) ELECTRICAL SYSTEM

1

6610510

TIE Was 1715312 - A

2

6553653

GROMMET

3

61D5

NUT

4

30H34

CLAMP

5

10C512

BOLT Was 6553808 - A

6

HARNESS NLA - Was 6562058 - A

7

30H19

CLIP

8

SWITCH See BTI289 NLA - Ignition - Order Ref. 23 - Was 6519592 - A

8

6665606

SWITCH

8

6674202

NUT

9

6598721

NUT

10

6553651

GROMMET

11

PANEL NLA - Instrument - Was 6560016 - A

12

17C564

BOLT

13

6512807

GAUGE Ammeter

14

6513640

PLUG

15

6512809

KEY For 6519592

15

6666202

KEY For 6665606

16

6664886

HOURMETER Was 6631657 - A

17

12D6

NUT 10

18

12E6

WASHER

19

85G608

SCREW

20

6513469

HOLDER Fuse

21

6514643

GASKET

22

6514642

CAP

23

6724282

SWITCH KIT
