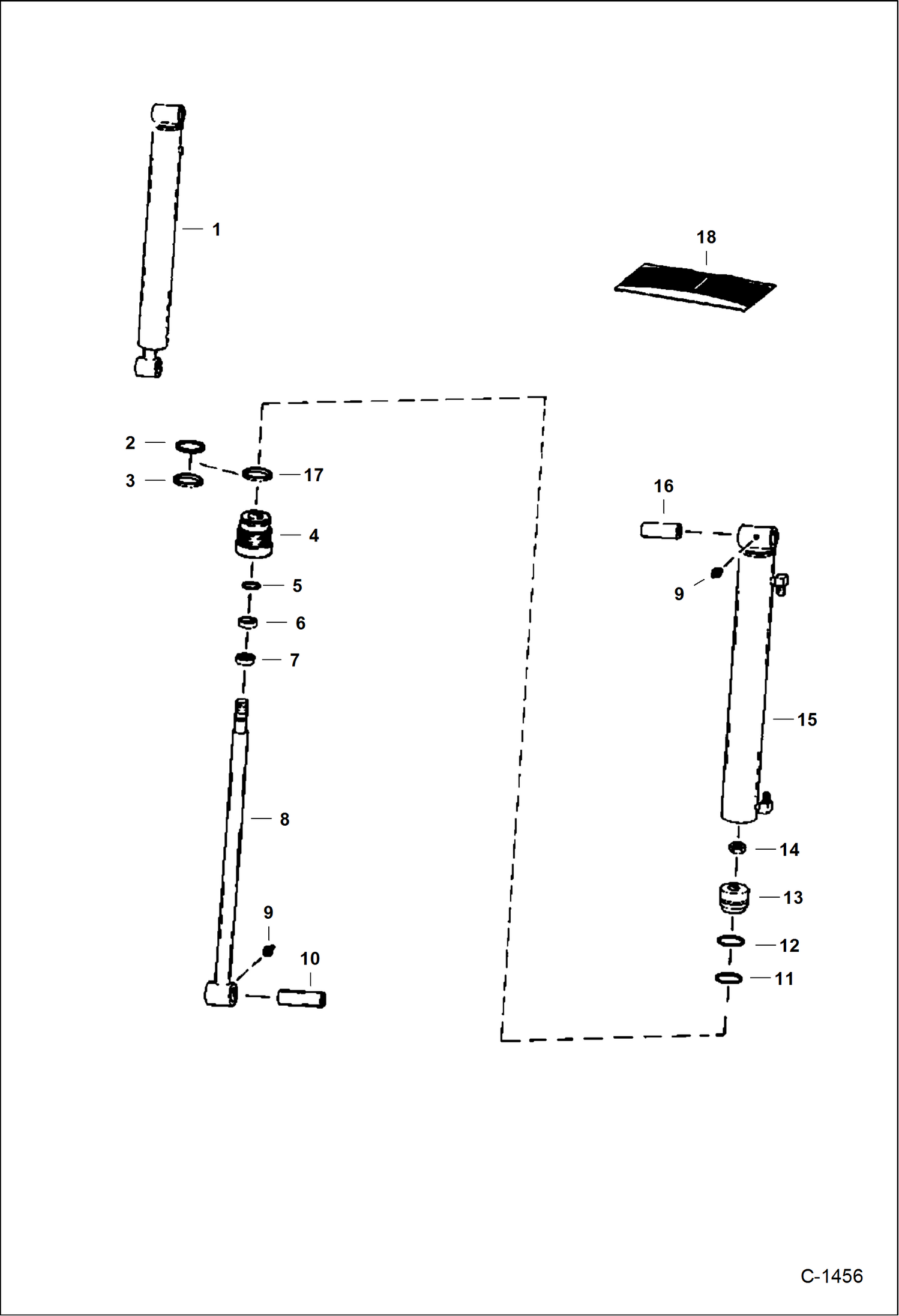

Запчасти Bobcat 300s TILT CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - tilt - W/Ref. 2-16 - Was 6560924 - A

2

54K40124

O-RING Was 25K- 40124 - B

3

73K224

RING back-up - Was NSS - D

4

6538595

HEAD, CYL HYD Was 6504933 - A

5

O-RING NSS

6

6667323

SEAL Was 6704243 - B

7

1657083

WIPER ROD wiper - Was NSS - D

8

ROD NLA - Was 6592750 - A

9

10H25

FITTING, GREASE 5

10

6500822

BEARING

11

54K30118

O-RING Was 25K030118B - B

12

6516231

SEAL Was NSS - D

13

6558196

PISTON

14

92D12

NUT Was 86D000012B - B

15

CASE NLA - Was 6592032 - A

16

6500821

BEARING

17

7008781

SEAL, QUAD

18

7137771

SEAL KIT Ref. 5-7, 11, 12, 14, & 17 - Was 6803472 - A
