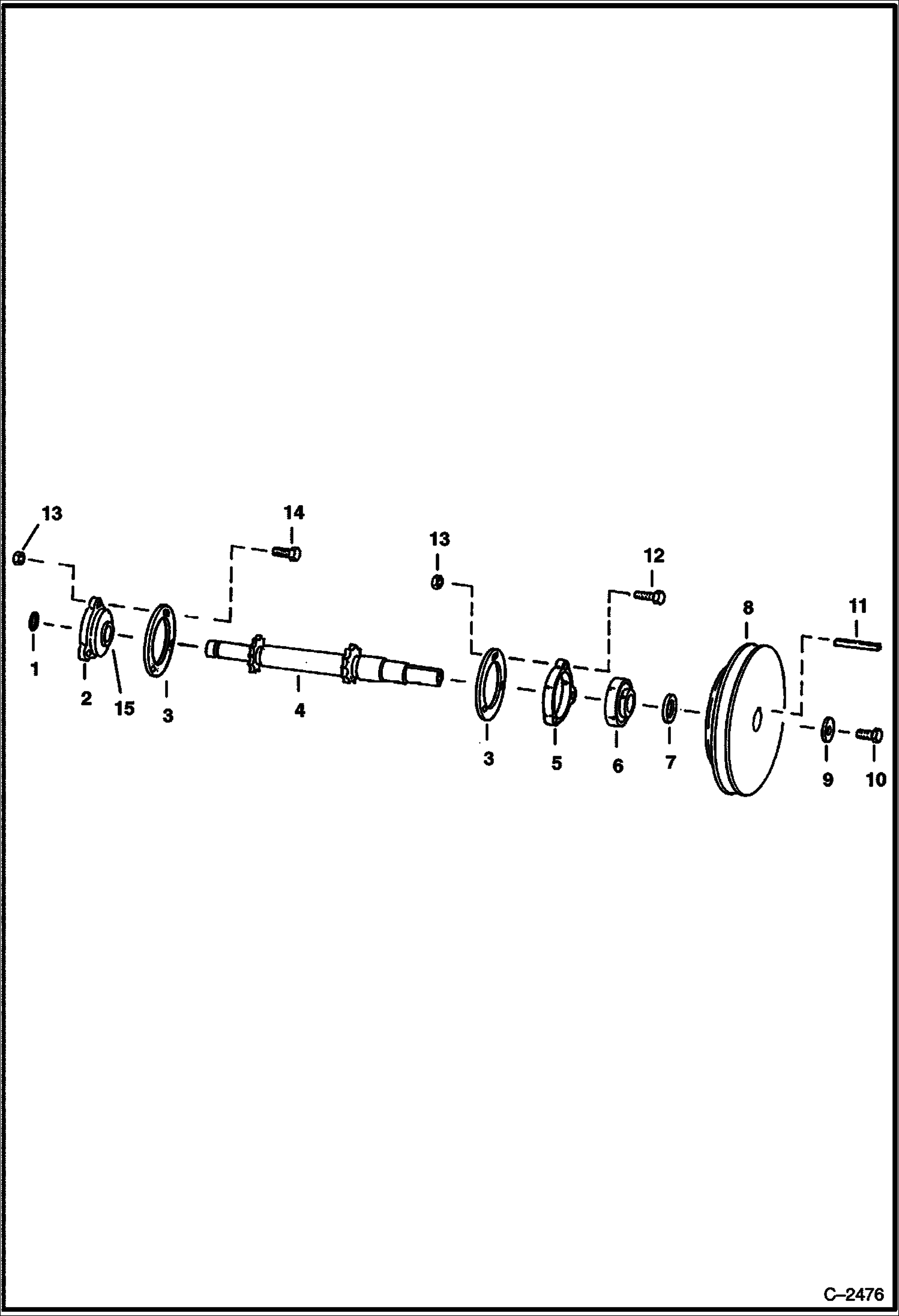

Запчасти Bobcat 300s UPPER JACKSHAFT (S/N 14297 & Above) DRIVE TRAIN

1

58K119

O RING 10

2

BEARING NLA - Order Ref. 15 - Was 6552211 - A

3

6500758

GASKET

4

SHAFT See BTI148 NLA - Was 6560101 - A

5

HOUSING NLA - Was 6560103

6

6518862

BEARING Was 6509275 - A

7

SPACER NLA - Was 6560104 - A

8

PULLEY NLA - WAs 6558186 - A

9

6558268

WASHER

10

17C816

BOLT

11

KEY NLA - Was 7J3202 - A

12

17C628

BOLT

13

57D6

NUT 5

14

17C620

BOLT

15

6671906

BEARING Insert into Ref. 2
