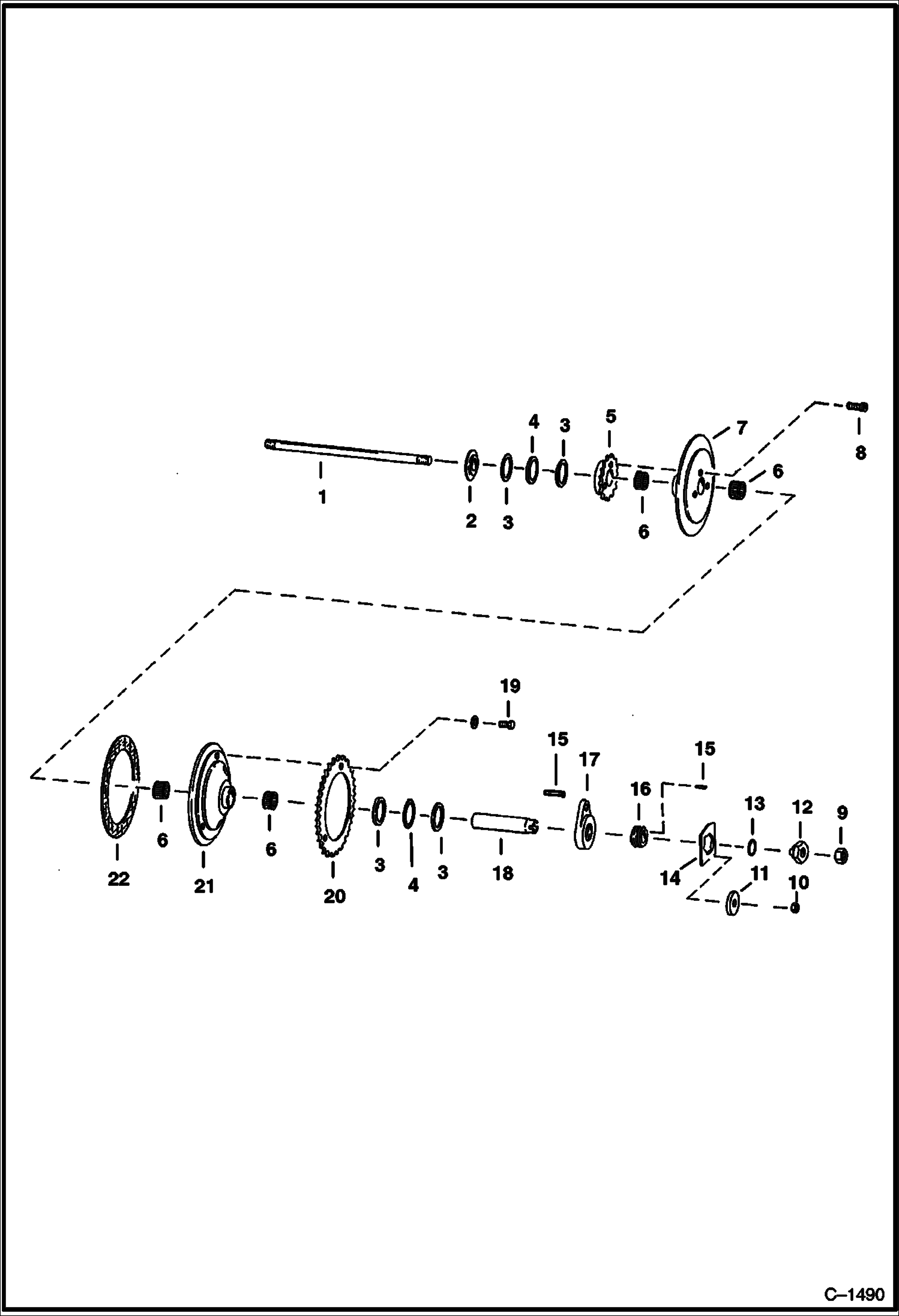

Запчасти Bobcat 300s CLUTCH DRIVE TRAIN

1

SHAFT NLA - Was 6500346 - A

2

CARRIER NLA - Was 6500926 - A

3

6540478

RACE

4

6519100

BEARING

5

6502283

SPROCKET

6

6515068

BEARING

7

6502532

PLATE, CLUTCH

8

1318464

SCREW

9

59D10

NUT

10

61D6

NUT 5

11

WASHER NLA - Was 6509801 - A

12

6500709

NUT

13

25K40028

O RING 10

14

BRACKET NLA - Was 6500345 - A

15

7J1008

KEY

16

6502311

THREAD Clutch - L.H.

16

6502312

THREAD Clutch - R.H.

17

6540559

NUT Actuating - R.H. - W/Race

17

6540558

NUT Actuating - L.H. - W/Race

18

6500393

PIN

19

8C512

SCREW

20

6502282

SPROCKET

21

6502538

PLATE, CLUTCH Clutch

22

6502424

LINING Clutch
