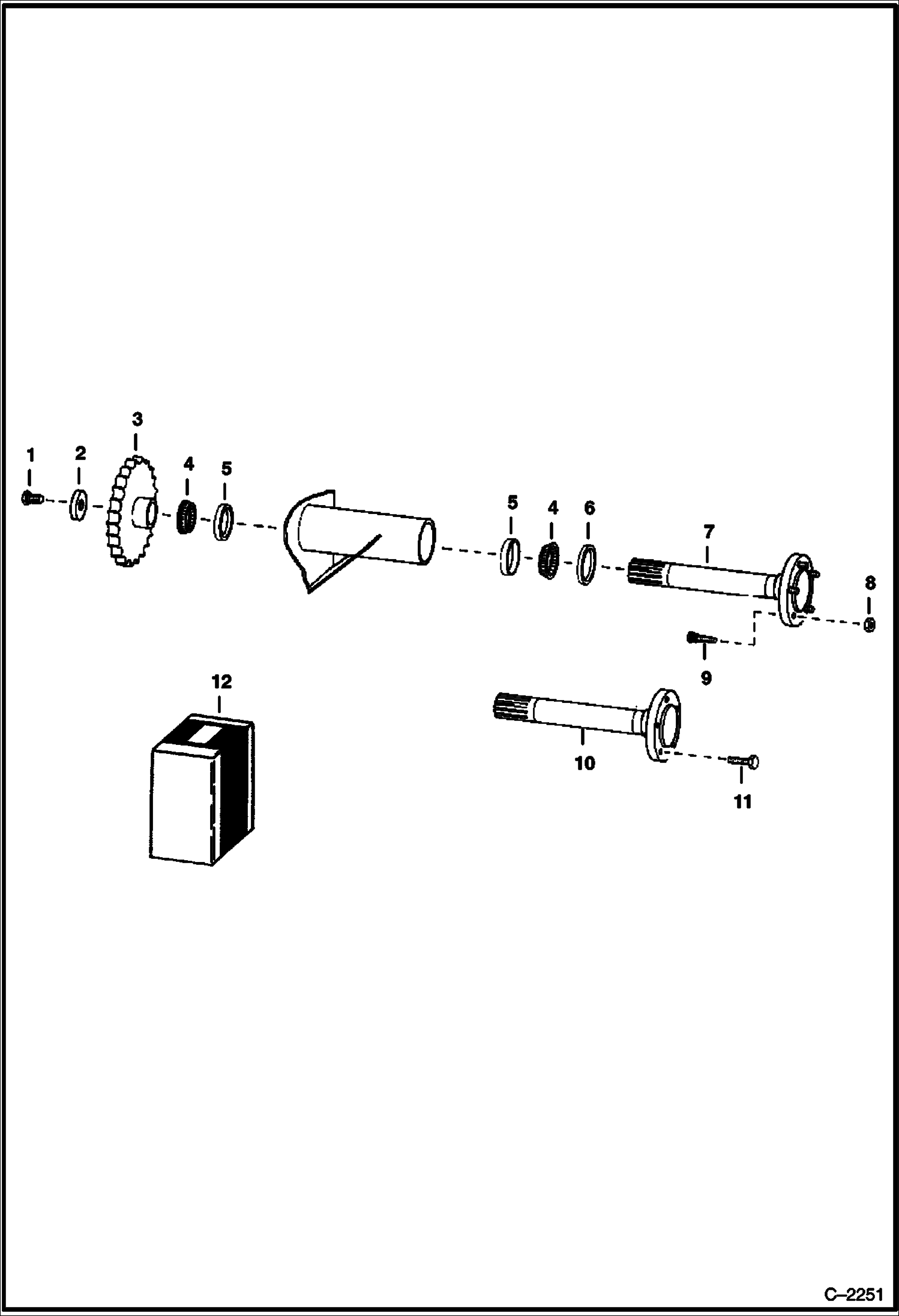

Запчасти Bobcat 300s AXLE DRIVE TRAIN

1

9G1224

BOLT

2

WASHER NLA - end - Was 6558643 - A

3

6500401

SPROCKET NLA - Was 6500401 - A

4

6648774

BEARING Was 6648874 - B

5

6648776

RACE Was 6648876 - B

6

6512539

SEAL Axle

7

AXLE NLA - W/Ref. 9 - Was 6561151

8

6561152

NUT

9

6506362

STUD

10

AXLE NLA - Order Ref. 7 & 8

11

6516294

BOLT Wheel

12

6592886

KIT See Illustration AXLE SEAL KIT/ B4041
