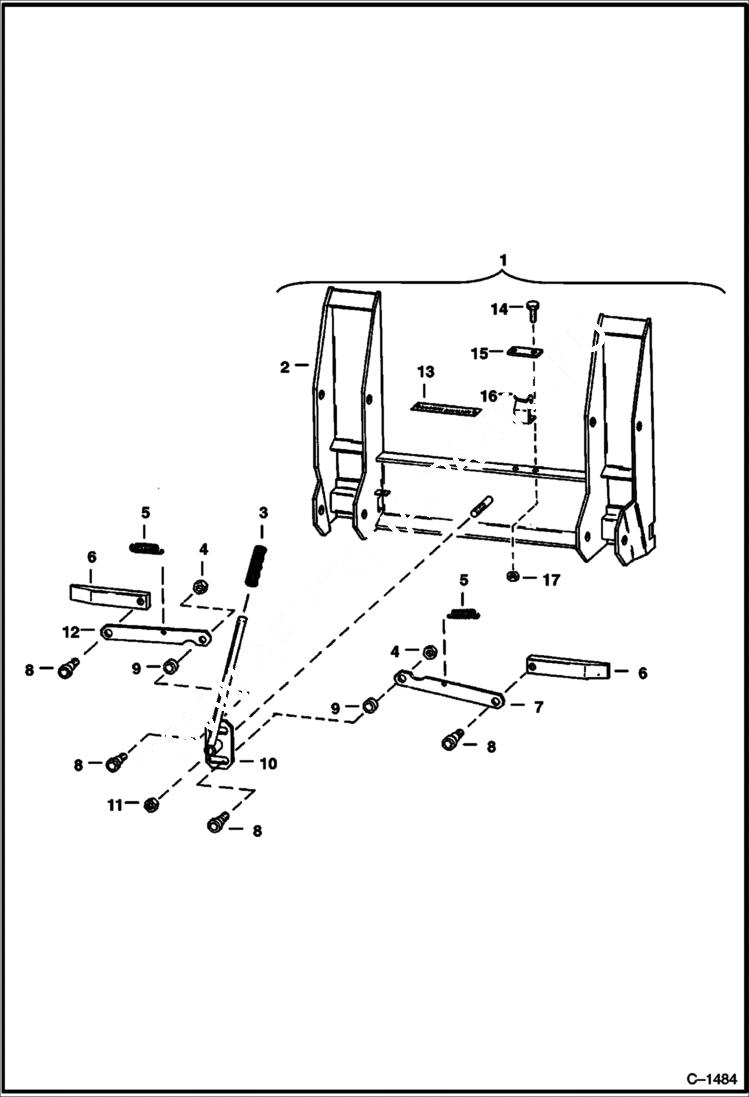

Запчасти Bobcat 300s BOB-TACH MAIN FRAME

1

BOB-TACH See Illustration DECALS/ B4117 NLA - Ref. 2-17 - Also order 6561383 decal - Was 6500376 - A

2

FRAME NLA

3

6515109

GRIP

4

61D6

NUT 5

5

6505076

SPRING

6

WEDGE NLA - Was 6500388 - A

7

BAR NLA - R.H. - Was 6500389 - A

8

38C806

BOLT Shoulder - Was 1308910B - A

9

6544654

BUSHING

10

6541798

HANDLE

11

81D8

NUT

12

BAR NLA - LH - link - Was 6500968 - A

13

6504370

DECAL

14

17C512

BOLT 5

15

6554843

BAR

16

6554844

BRACKET

17

91D5

NUT 5 Was 81D5 - A
