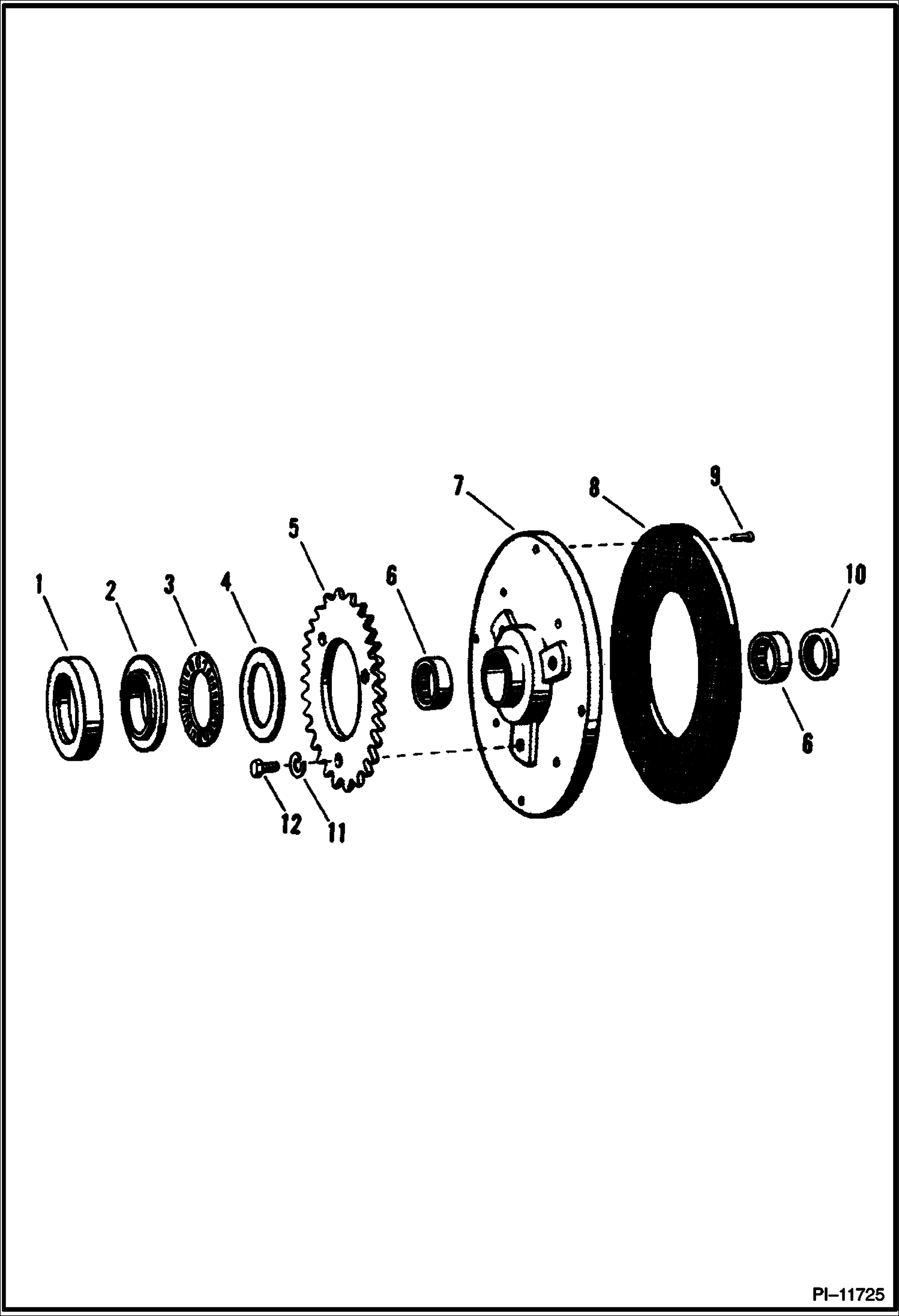

Запчасти Bobcat 200s CLUTCH PLATE Outside Illustrated DRIVE TRAIN

1

6544948

CAP dust

2

6546194

WASHER thrust

3

109319

BEARING thrust

4

6515066

WASHER thrust

5

6544937

SPROCKET

6

654383

BEARING roller

7

PLATE NLA - clutch (Outside) - Was 6544394 - A

7

6544966

PLATE clutch (Inside)

8

6544944

FACING clutch

9

RIVET NLA - Was 23H708 - A

10

200032

SEAL grease

11

4E6

WASHER lock

12

17C612

BOLT 5
