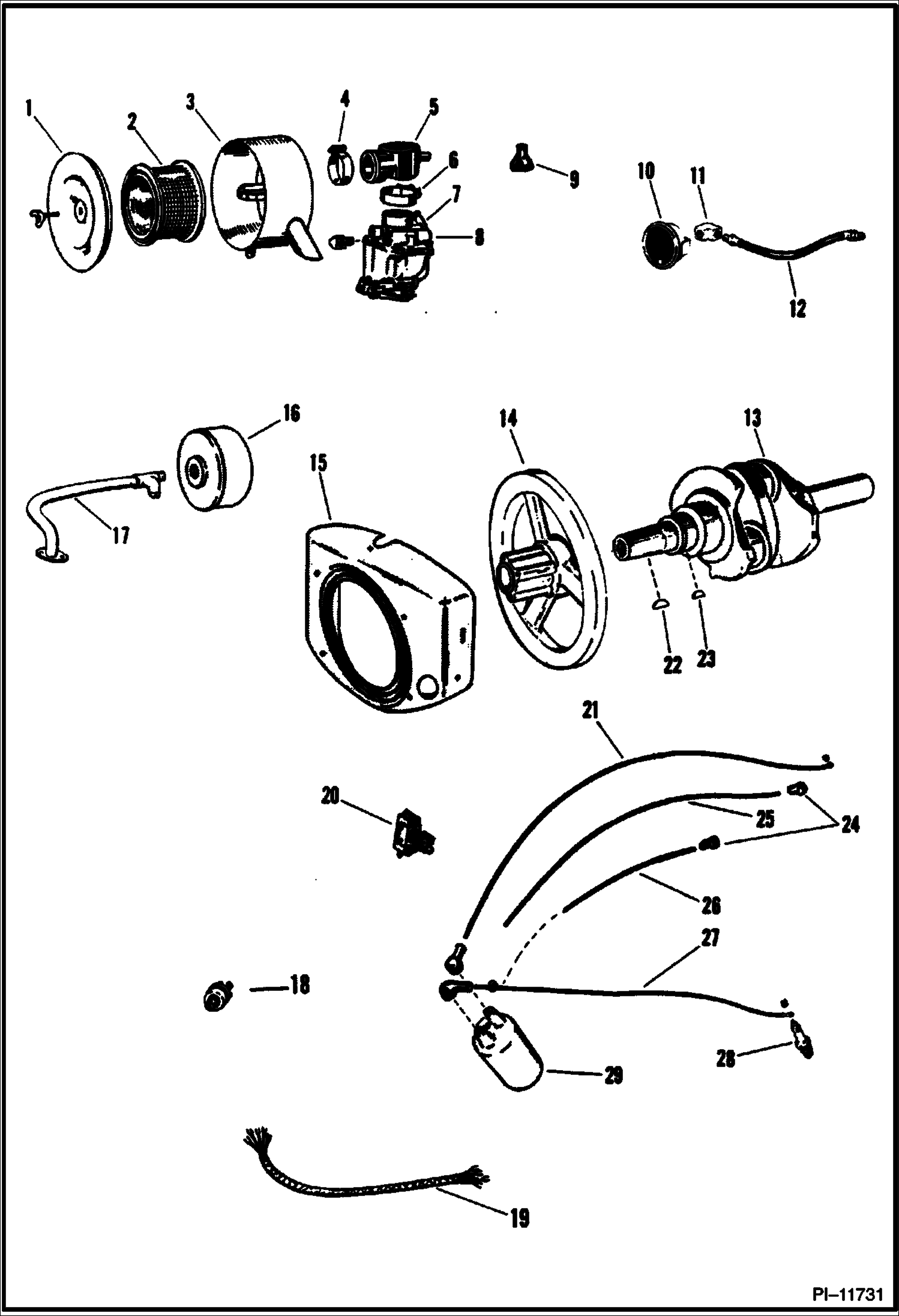

Запчасти Bobcat 200s ENGINE PARTS POWER UNIT

1

6519722

COVER air cleaner

2

6519183

CARTRIDGE air cleaner

3

HOUSING NLA - air cleaner

4

CLAMP NLA - hose

5

6519719

INLET air cleaner

6

CLAMP NLA - hose

7

SHAFT NSS - cloke

8

6519729

CARBURETOR gasoline

9

6519252

CAP breather

10

6519059

GAUGE oil

11

ELBOW NLA

12

6519844

HOSE oil

13

6519841

CRANKSHAFT Engine Spec. #674F & 960F)

14

6519840

FLYWHEEL W/Ring Gear - Engine Spec. #674F

15

HOUSING NLA - blower

16

6519842

MUFFLER exhaust

17

MANIFOLD NLA - exhaust (Order 6517008)

18

6515315

SWITCH

19

HARNESS NLA - wiring

20

6519716

SWITCH toggle

20

6519717

SWITCH push button

21

6519727

CABLE spark plug (L.H. - Long)

22

6512824

KEY

23

858732

KEY woodruff

24

6518084

NIPPLE spark plug cable

25

6519724

CABLE spark plug (L.H. - Long - W/Nipple)

26

6519725

CABLE spark plug (R.H. Short - W/Nipple)

27

6519726

CABLE spark plug (R.H. - Short)

28

SPARK PLUG

29

6517657

COIL ignition
