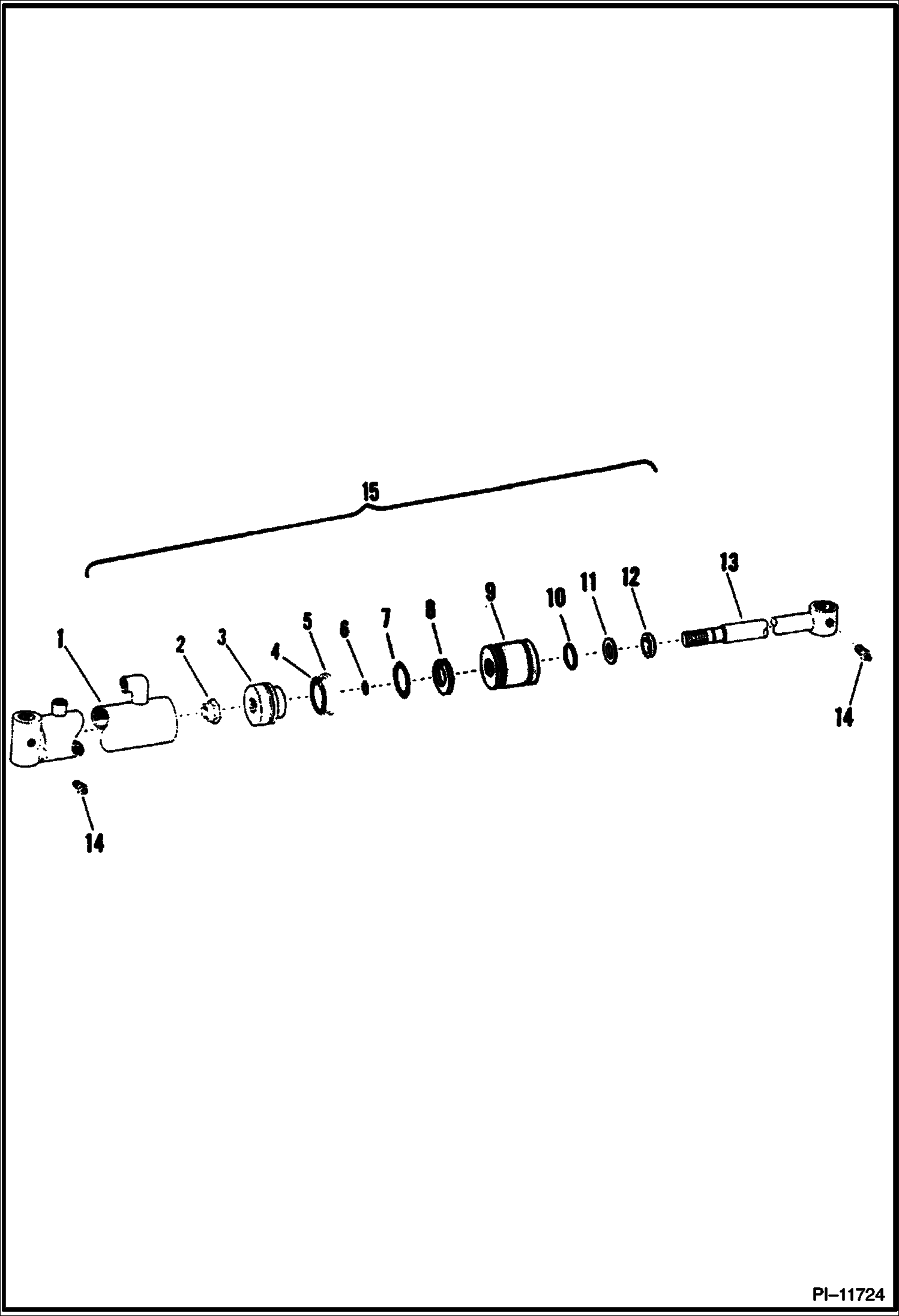

Запчасти Bobcat 200s TILT CYLINDER HYDRAULIC SYSTEM

1

CASE NLA - cylinder

2

6D12

NUT hex

3

PISTON NLA - cylinder

4

25K60220

O RING 10

5

669824

WASHER

6

25K30018

O RING 10

7

25K40224

O RING 10

8

1308392

RING retaining

9

HEAD NLA - cylinder

10

25K40100

O RING 10

11

617352

WASHER retaining

12

563154

WIPER cylinder rod

13

ROD cylinder

14

10H25

FITTING, GREASE 5 grease

15

CYLINDER NLA - W/Ref. 2-13
