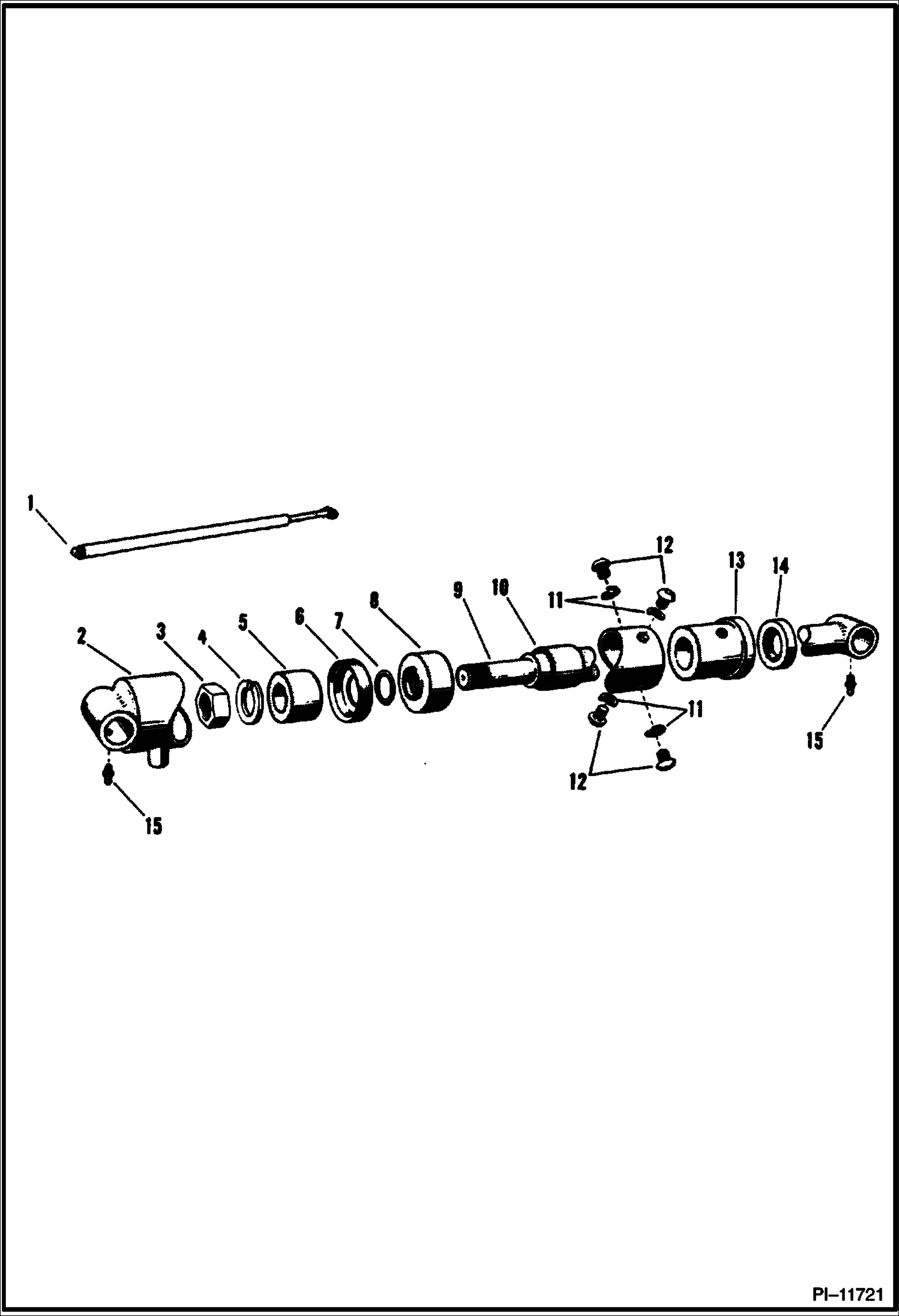

Запчасти Bobcat 200s LIFT CYLINDER HYDRAULIC SYSTEM

1

6544911

ASSY lift - W/Ref. 2-14

2

CASE NLA - cylinder

3

8D12

NUT hex, 3/4'' NF (Plated)

4

23E12

WASHER Was 4E12 - A

5

FOLLOWER NLA

6

CUP NLA - leather - Was 6507910 - A

7

25K40024

O RING 10

8

PISTON NLA

9

6544396

ROD piston

10

6502085

SPACER

11

4E6

WASHER lock

12

SCREW NLA - cap - Was 11G-624 - A

13

HEAD NLA - cylinder

14

SEAL NLA - cylinder rod - Was 663279 - A

15

10H35

FITTING, GREASE 10 grease
