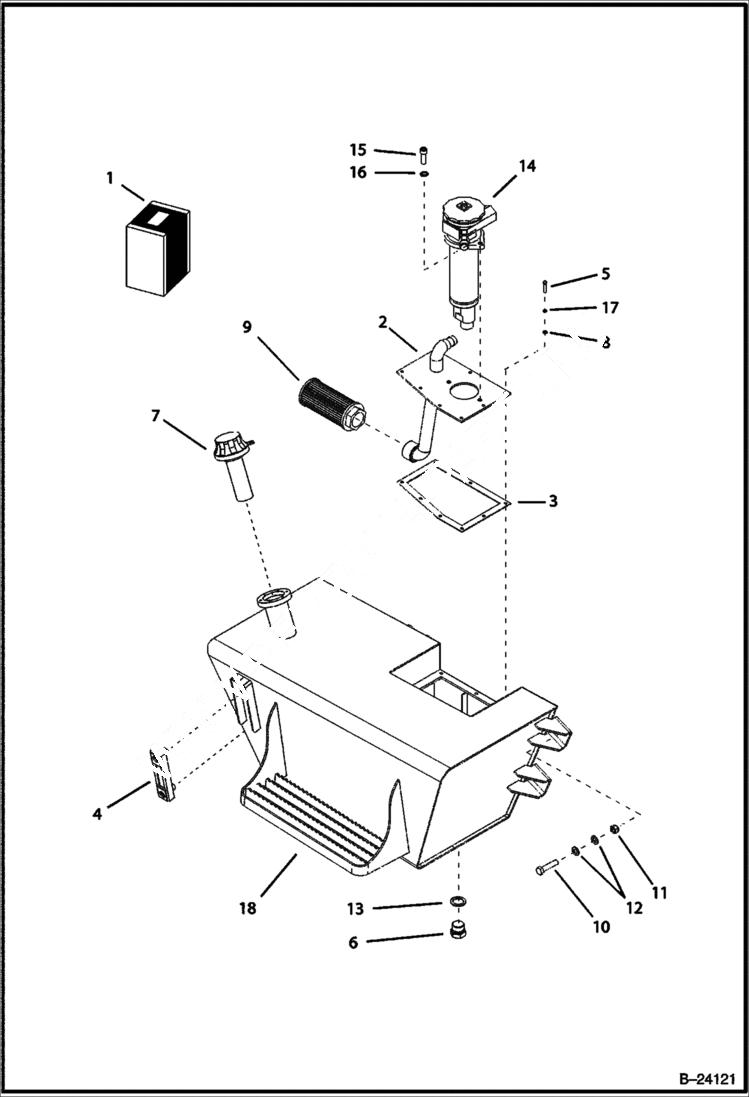

Запчасти Bobcat BL575 HYDRAULIC CIRCUITRY Oil Tank HYDRAULIC SYSTEM

1

6961652

TANK ASSY Ref. 1 -13

2

6961653

PLATE

3

6961473

SEAL

4

6960717

THERMOMETER

5

1CM620

BOLT Was 4CM620 - A

6

6960346

PLUG

7

6960347

FITTING

8

6964586

WASHER

9

6961474

BASKET

10

1CM1240

BOLT

11

16DM12

NUT

12

6964573

WASHER

13

6964540

RING

14

6961811

FILTER

15

1GM1025

BOLT

16

8EM120

WASHER

17

8EM60

WASHER

18

6961471

TANK
