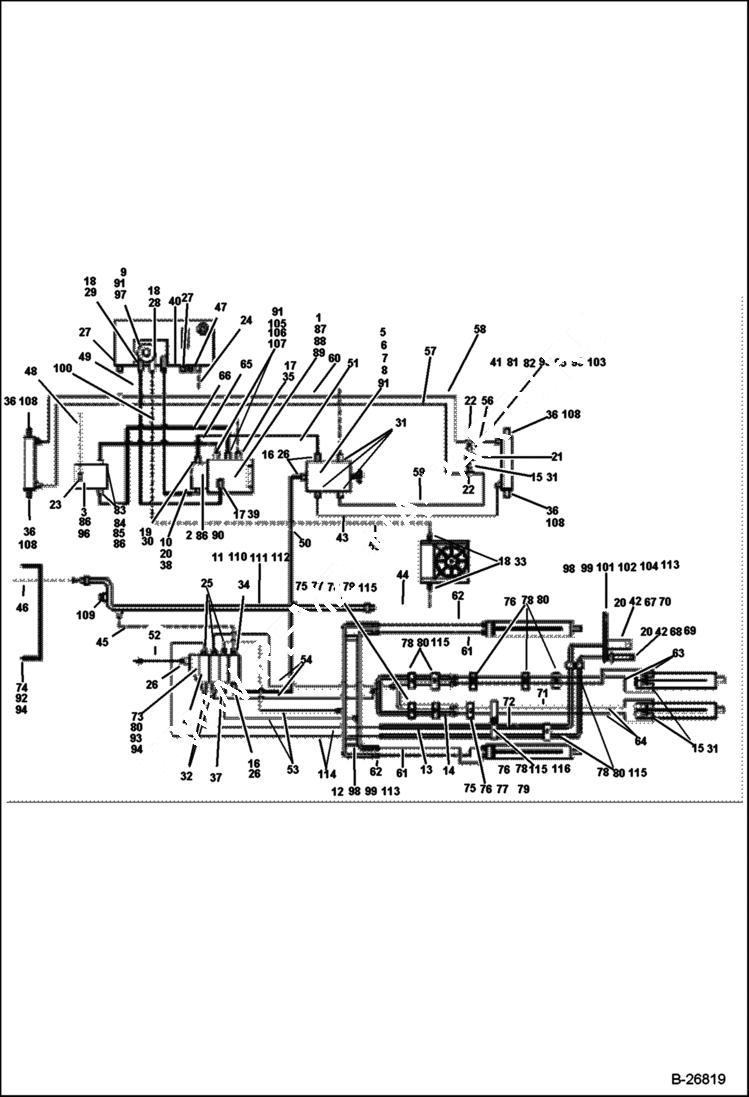

Запчасти Bobcat BL575 HYDRAULIC CIRCUITRY (BL570) 5706 11024 & Below (BL575) 5720 11006 & Below HYDRAULIC SYSTEM

1

6961756

PUMP

2

GEAR PUMP NLA - W/ O-ring groove - Was 6961761 - A

3

6961767

MOTOR

4

6961775

VALVE

5

6961784

STEERING UNIT

6

VALVE NLA - Order 6961784 - Was 6961795 - A

7

6962274

STEERING COLUMN

8

6960700

BOLT

9

6961811

FILTER

10

6960885

BRACE

11

6961757

PIPE

12

6961758

TUBE

13

6961760

TUBE

14

6961760

TUBE

15

6962101

SEAL

16

6962096

RING

17

6962815

RING

18

6961995

RING

19

6960887

O-RING

20

6968843

O-RING

21

6961762

VALVE

22

6961763

CONNECTOR

23

6961764

FITTING

24

6960733

FITTING

25

6960702

FITTING

26

6960654

FITTING

27

6960723

FITTING

28

6961765

FITTING

29

6961766

FITTING

30

6961768

FITTING

31

6960703

FITTING

32

6960706

FITTING

33

6961769

FITTING

34

6961745

FITTING

35

6961770

FITTING

36

6961771

FITTING

37

6961772

FITTING

38

6961773

FITTING

39

6961774

FITTING

40

6961776

CAP

41

6961777

HOSE

42

6962389

FITTING

43

6962393

HOSE

44

6962394

HOSE

45

6962395

HOSE

46

6962396

HOSE

47

6962397

HOSE

48

6962398

HOSE

49

6962399

HOSE

50

6962122

HOSE

51

6962123

HOSE

52

6962400

HOSE

53

6962125

HOSE

54

6962126

HOSE

55

6962127

HOSE

56

6962128

HOSE

57

6962130

HOSE

58

6962401

HOSE

59

6962131

HOSE

59

6962131

HOSE

60

6962132

HOSE

61

6962133

HOSE

62

6962402

HOSE

63

6962135

HOSE

64

6962403

HOSE

65

6961802

HOSE

66

6961803

HOSE

67

6672960

COUPLER, FF FEMALE straight

68

6674688

COUPLER, FF MALE straight

69

6960671

COVER

70

6960672

COVER

71

6962391

PTO TUBE

72

6962392

PTO TUBE

73

6961672

LEVER

74

6961808

HOLDER

75

6961809

HOLDER

76

6960756

HOLDER

77

6961810

PLATE

78

6960755

PLATE

79

1CM870

BOLT

80

1CM835

BOLT

81

6962818

NUT

82

6962099

WASHER

83

6961804

BRACE

84

6961805

O RING

85

1GM1245

BOLT

86

8EM120

WASHER

87

1CM1440

BOLT

88

8EM140

WASHER

89

6962810

WASHER

90

1GM1235

BOLT

91

6EM10

WASHER

92

1CM830

BOLT

93

6962819

WASHER

94

16DM8

NUT

95

6966199

HOLDER

96

1GM1240

BOLT

97

1GM1025

BOLT

98

1CM825

BOLT Was 4CM825 - A

99

8EM80

WASHER

100

6964543

HOSE 330mm

101

6962404

HOLDER

102

6964581

WASHER

103

1CM816

BOLT

104

6961752

NUT

105

6962405

BRACE

106

6962406

O RING

107

1GM1040

SCREW

108

6975277

O-RING

109

6960877

PLUG

110

1CM1030

BOLT

111

6962913

WASHER

112

16DM10

NUT

113

6964631

WASHER

114

6962136

HOSE

115

6961934

CLAMP

116

1CM865

SCREW
