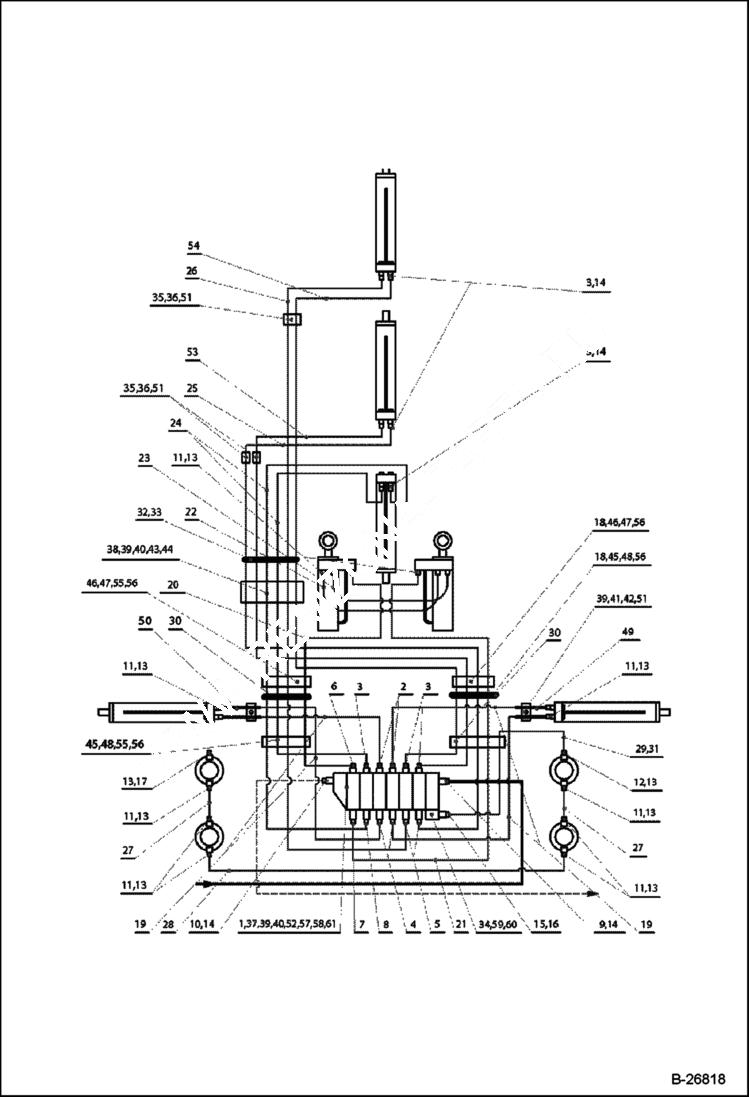

Запчасти Bobcat BL575 HYDRAULIC CIRCUITRY Side Shift Backhoe HYDRAULIC SYSTEM

1

6962230

REAR DISTRIBUTOR 26444 SIDESHIFT

2

6960720

FITTING

3

6960702

FITTING

4

6960735

FITTING

5

6960706

FITTING

6

6960737

FITTING

7

6960736

FITTING

8

6961867

FITTING

9

6960654

FITTING

10

6961745

FITTING

11

6960704

FITTING

12

6975280

FITTING G3/8''//M16X1.5

13

6962101

SEAL

14

6962096

RING

15

6962814

RING

16

6960790

FITTING

17

6961091

PLUG

18

1GM1050

BOLT

19

6962407

HOSE

20

6964787

HOSE

21

6964788

HOSE

22

6962154

HOSE

23

6962155

HOSE

24

6962410

HOSE

25

6962411

HOSE

26

6962412

HOSE

27

6962413

HOSE

28

6962414

HOSE

29

6962415

HOSE

30

6962416

PROTECTION HOSE

31

6962417

HOSE

32

6962418

HOSE PROTECTION 770MM

33

6962419

HOSE

34

6968478

WASHER

35

6961809

HOLDER

36

6961810

PLATE

37

1CM830

BOLT

38

1CM880

BOLT

39

6962819

WASHER

40

16DM8

NUT

41

6961929

PIPE HOLDER

42

6961094

HOLDER

43

6962420

HOLDER HOSES

44

6961927

HOLDER

45

6961927

HOLDER

46

6961928

HOLDER

47

6961924

COVER

48

6961925

COVER

49

6961872

STABILIZER SUPPORT

50

6962044

STABILLIZER SUPPORT LEFT

51

1CM845

BOLT

52

6961092

LEVER

53

6962422

HOSE

54

6962423

HOSE

55

1GM1060

BOLT

56

8EM100

WASHER

57

6960738

CONTROL VALVE

58

6960754

KNOB

59

6964622

WASHER

60

13GM4010

BOLT

61

6961930

WASHER
