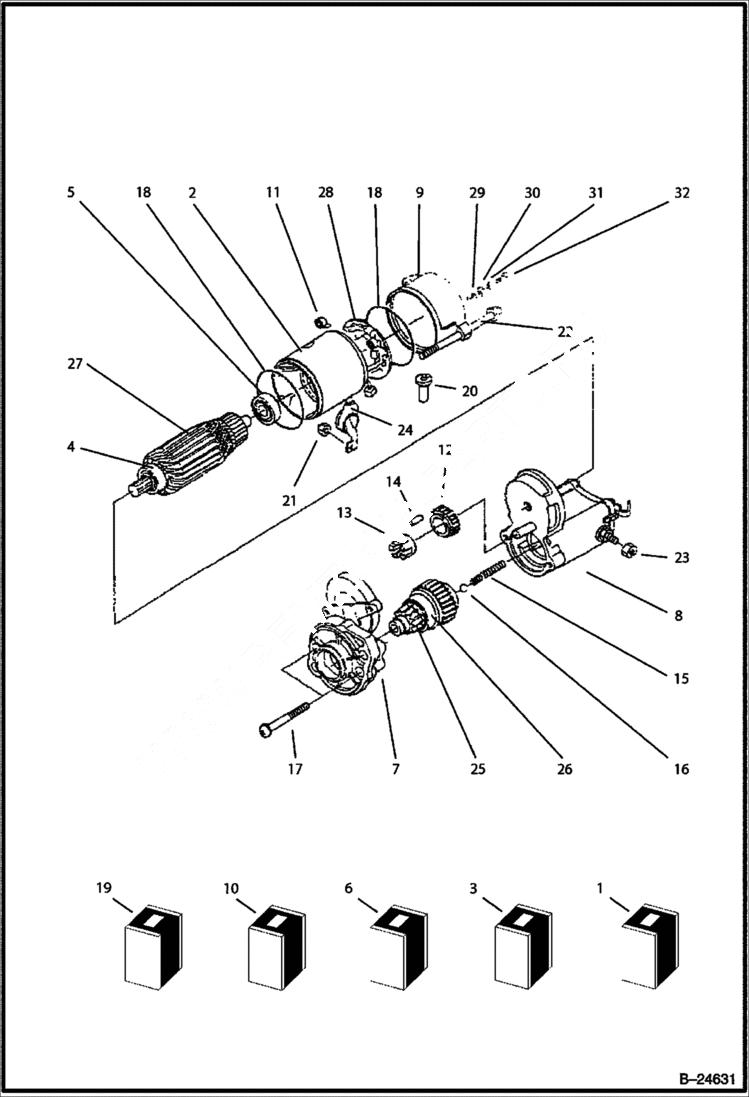

Запчасти Bobcat BL570 STARTER POWER UNIT

1

6988700

STARTER assy - Ref. 2-32 - Was 6662323 - A

2

6662324

YOKE assy

3

6662325

ARMATURE assy - Ref. 4, 5 & 27

4

6662327

BEARING Was 6683289 - A

5

6662326

BEARING

6

6662328

CLUTCH assy - Ref. 25 & 26

7

6662329

FRAME

8

6662330

SWITCH

9

6662331

END

10

6662332

HOLDER Ref. 11 & 28

11

3974738

SPRING

12

6662333

GEAR

13

6662334

RETAINER

14

3390091

ROLLER

15

6662335

SPRING

16

3390093

BALL

17

6662336

BOLT

18

3390007

O-RING

19

3390008

BOLT ASSY Ref. 29-32

20

6662337

DRAIN

21

3390097

NUT

22

6662338

BOLT

23

6683153

NUT

24

6683290

COVER, TERMINAL

25

6653923

PINION, BEVEL

26

CLUTCH NLA

27

ARMATURE NLA

28

HOLDER, BRUSH NLA

29

WASHER NLA

30

WASHER NLA

31

WASHER NLA

32

BOLT NLA
