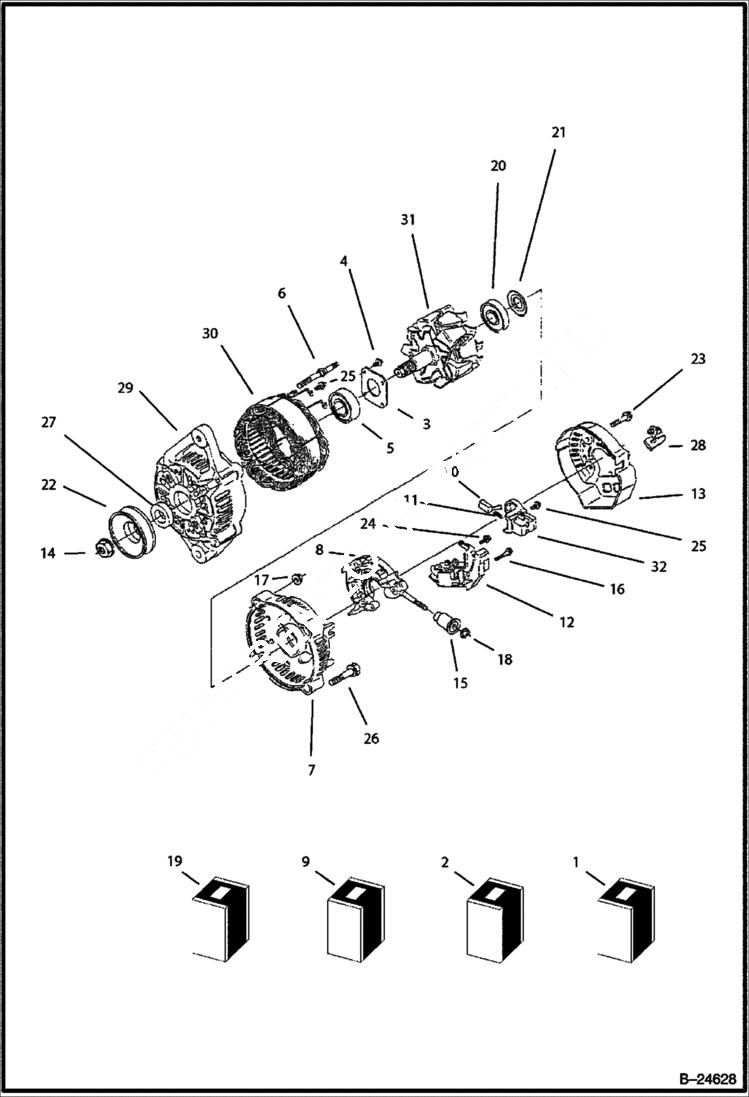

Запчасти Bobcat BL570 ALTERNATOR POWER UNIT

1

6682525

ALTERNATOR assy - Ref. 2-32

2

6683192

FRAME ASSY drive end - Ref. 3-6

3

6681724

PLATE, RETAINER

4

6681725

SCREW

5

6681727

BEARING, BALL

6

6681726

BOLT, THROUGH

7

6683193

FRAME, END

8

6683194

ASSY, RECTIFIER

9

6681732

HOLDER brush - Ref. 10, 11 & 32

10

6681733

BRUSH

11

6681734

SCREW

12

6969586

ASSY REGULATOR

13

6683195

COVER, END

14

6681709

NUT

15

6683196

BRUSH

16

6681734

SCREW

17

6681739

NUT

18

6653933

NUT

19

6683197

ROTOR ASSY Ref. 20, 21 & 31

20

6683198

BEARING, BALL

21

6681712

COVER, BEARING

22

6683199

PULLEY

23

6681738

BOLT

24

6681737

SCREW

25

6681736

SCREW

26

6681740

BOLT

27

6681710

COLLAR

28

6683200

CLAMP, CORD

29

FRAME NLA

30

STATOR NLA

31

ROTOR NLA

32

HOLDER, BRUSH NLA
