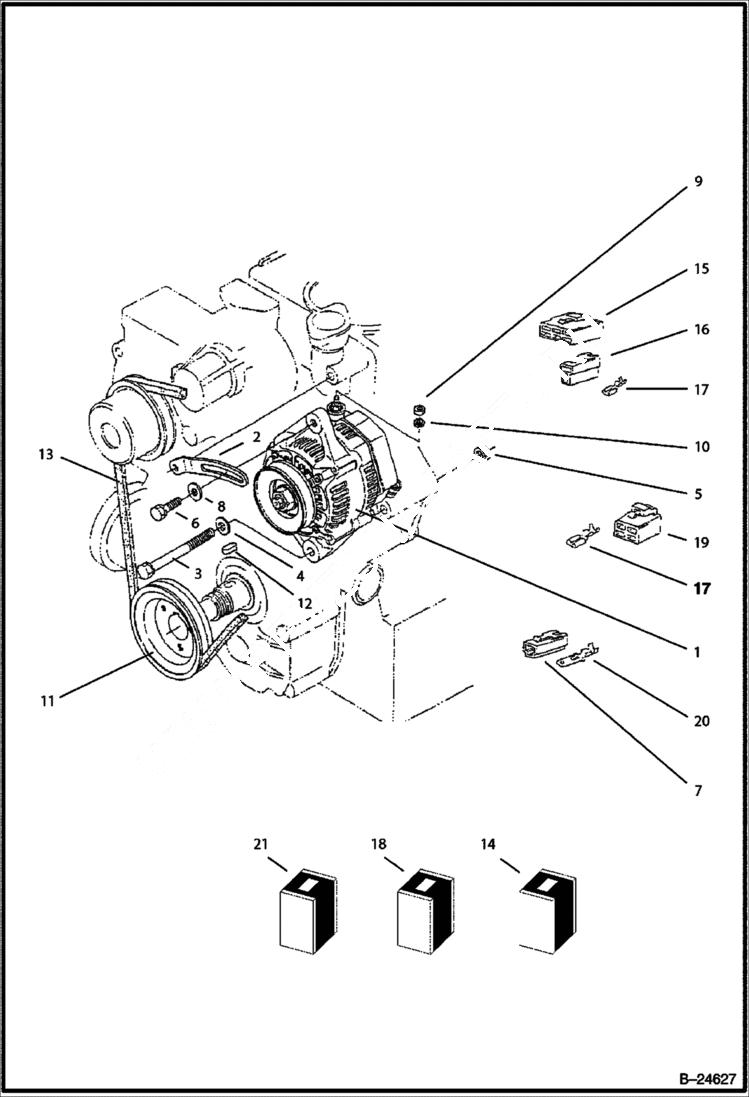

Запчасти Bobcat BL570 ALTERNATOR & PULLEY POWER UNIT

1

6988708

ALTERNATOR assy - Was 6683304 - A

2

6682526

STAY

3

6682527

BOLT

4

6680536

WASHER Was 6682528 - A

5

270M1C

NUT

6

6657416

BOLT

7

CONNECTOR NLA

8

6652740

WASHER, PLAIN

9

1DM6

NUT

10

6EM60

WASHER, SPRING

11

6655235

PULLEY fan drive

12

3974546

KEY feather

13

6655553

V BELT, A

14

6681700

COUPLER Ref. 15-17

15

6681701

CONNECTOR

16

6681702

CONNECTOR

17

6681703

TERMINAL

18

6969582

COUPLER Ref. 19 & 20

19

6969583

CONNECTOR

20

6969585

TERMINAL

21

6969584

TERMINAL Ref. 7 & 22
