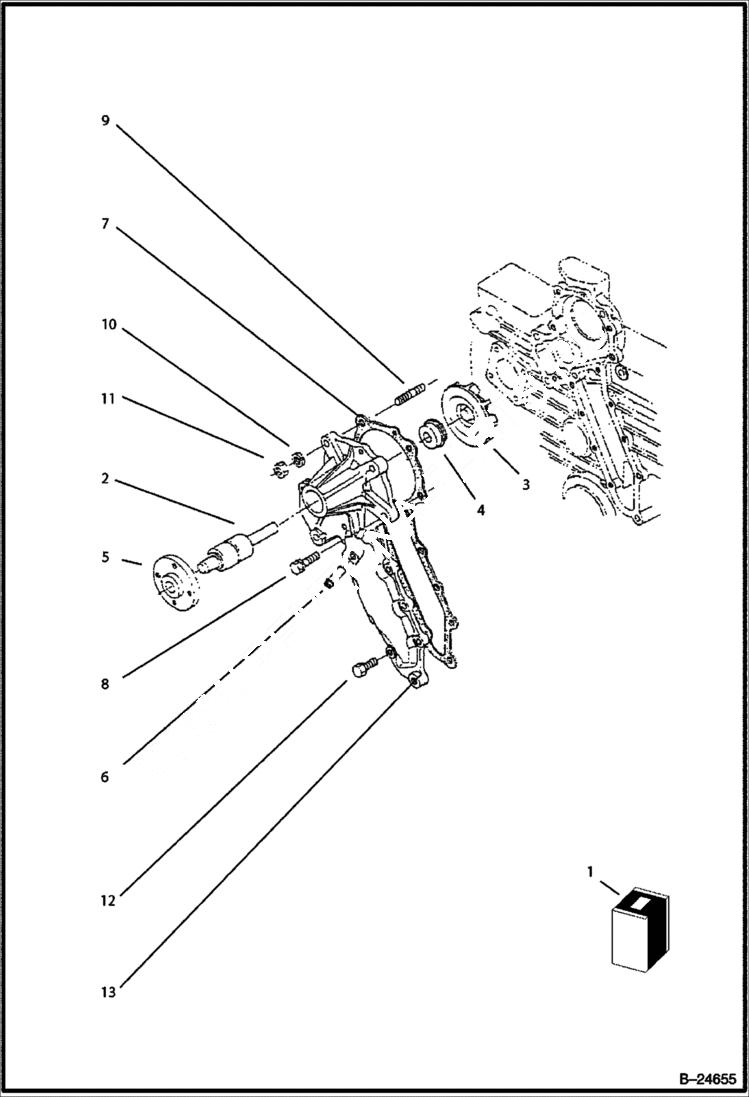

Запчасти Bobcat BL570 WATER PUMP POWER UNIT

1

PUMP NLA - assy - water - Ref. 2-6 & 13 - Was 6675652 - A

2

3974991

BEARING

3

6667460

IMPELLER

4

6667465

SEAL

5

3974992

FLANGE

6

6652745

PIPE

7

6666804

GASKET

8

4CM828

BOLT

9

3974267

STUD Was 6653946 - A

10

6EM80

WASHER, SPRING

11

6652792

NUT

12

6652580

BOLT

13

PUMP, WATER NLA
