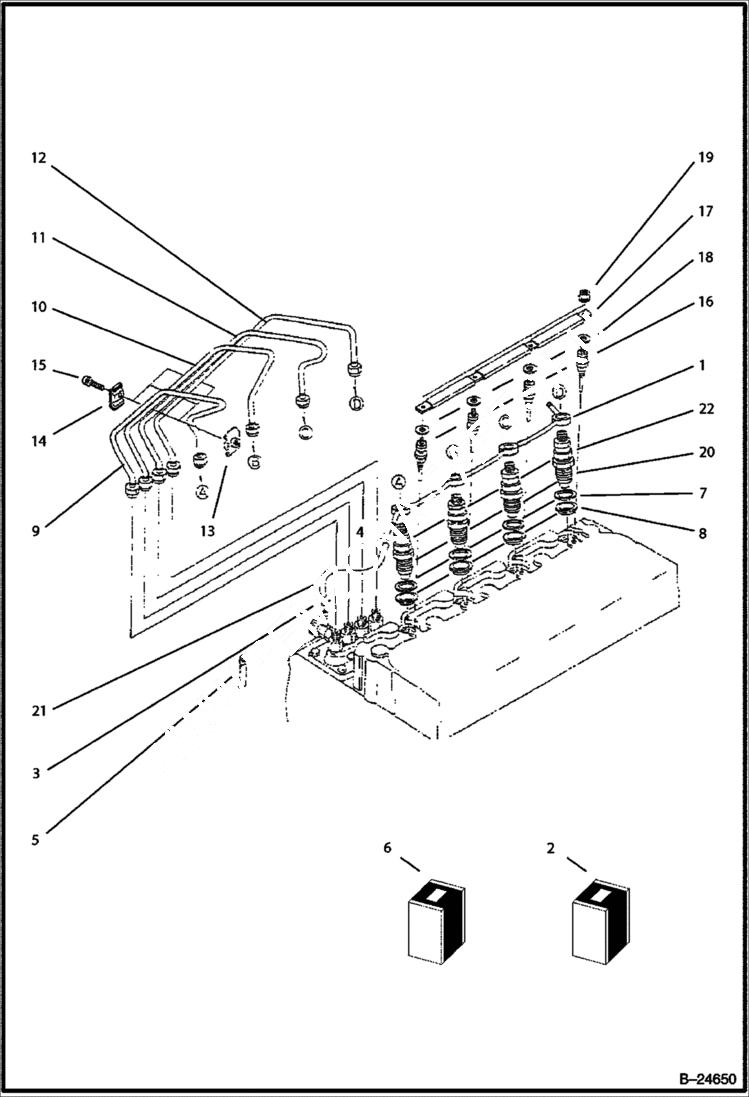

Запчасти Bobcat BL570 NOZZLE HOLDER & GLOW PLUG POWER UNIT

1

6682521

PIPE over flow

2

6598146

PIPE pipe over flow - Ref. 3, 4 & 21

3

6654718

CLAMP pipe - Was 6680795 - A

4

6654718

CLAMP

5

6667457

CLAMP

6

6682522

HOLDER KIT nozzle holder - Ref. 7, 8, 20 & 22

7

6655218

GASKET

8

6655872

HEAT SEAL

9

6675647

PIPE

10

6675648

PIPE

11

6682523

PIPE

12

6675650

PIPE

13

6652688

CLAMP

14

6652689

CLAMP

15

3974260

SCREW

16

6655233

GLOW PLUG

17

6655234

CORD glow plug - Was 6686987 - A

18

6670473

WASHER

19

6670472

NUT

20

6655873

NOZZLE Was 6667454 - A

21

HOSE NLA

22

HOLDER NLA
