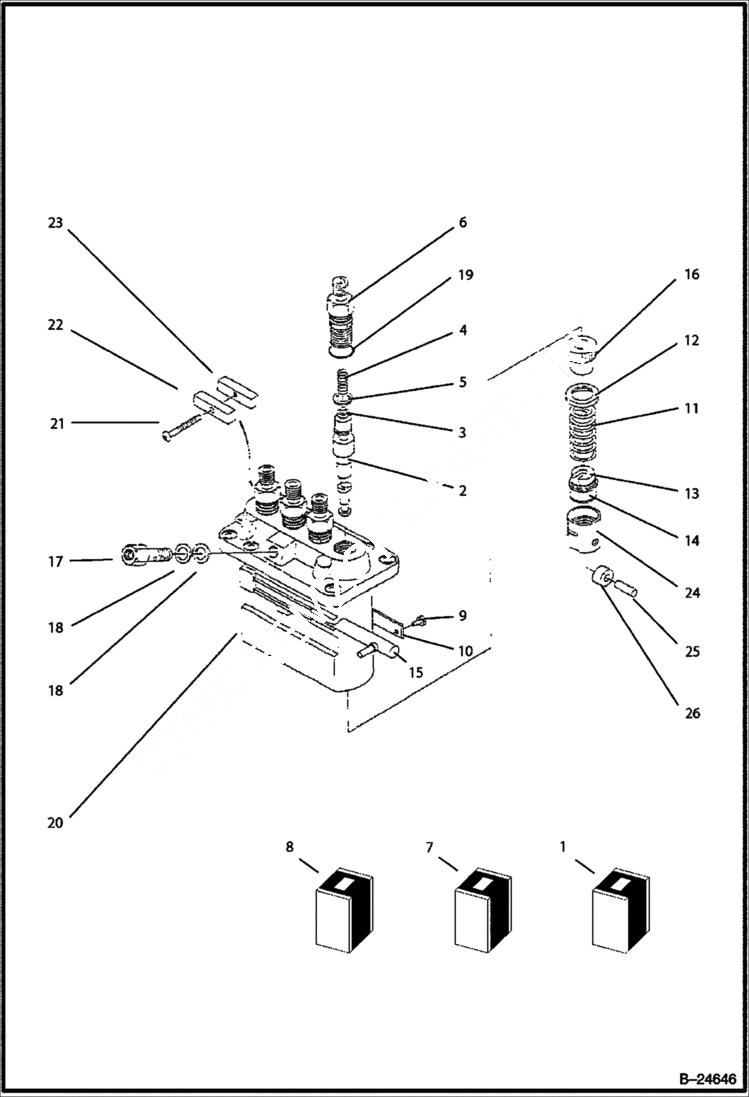

Запчасти Bobcat BL570 INJECTION PUMP POWER UNIT

1

6675656

PUMP pump assy - Ref. 2-26

2

6682516

ELEMENT

3

6682517

VALVE

4

6682518

SPRING

5

3974368

GASKET

6

6655204

HOLDER

7

6655205

PLATE ASSY. Ref. 21-23

8

3974385

TAPPETASY Ref. 24-26

9

6655206

BOLT

10

6655207

PLATE

11

3974282

PLATE

12

3974381

SEAT spring - upper

13

3974383

SEAT spring - lower

14

6682519

SHIM

15

3974787

RACK

16

6653894

SLEEVE

17

3975428

BOLT, EYE 14MM

18

3975389

GASKET Was 6698120 - B,D

19

6646730

O-RING

20

PUMP, INJECTION NLA

21

BOLT NLA

22

HOLDER NLA

23

HOLDER NLA

24

PISTON NLA

25

PIN NLA

26

WASHER NLA
