Запчасти Bobcat BL570 AIR ASSY POWER UNIT

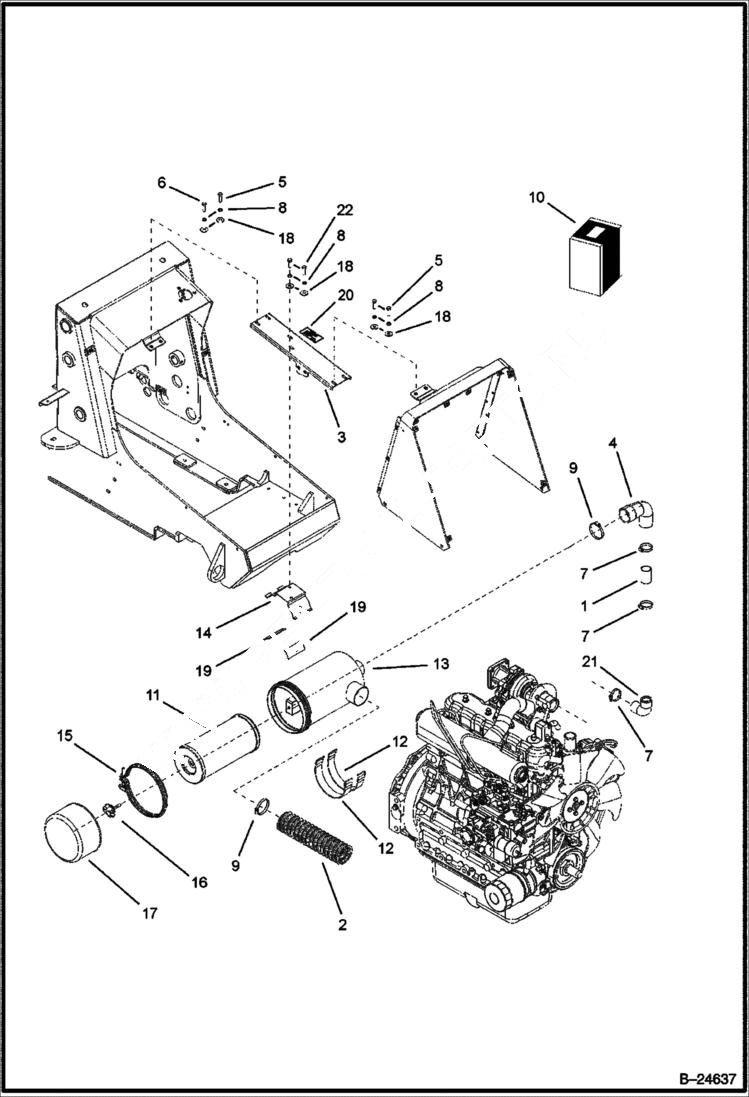

Схема запчастей Bobcat BL570 - AIR ASSY POWER UNIT

Артикул

Название

Примечание

Количество

1

6961674

ADAPTER

2

6961284

HOSE

3

6968835

HOLDER

4

6974818

HOSE

5

1CM816

BOLT Was 4CM816 - A

6

1CM830

BOLT Was 4CM830 - A

7

6960958

CLIP

8

8EM80

WASHER

9

6960205

CLIP

10

6964749

FILTER W/Ref. 11-17 & 19

11

6961197

FILTER

12

6964752

HOLDER

13

COVER NLA

14

6964750

COVER

15

RING NLA

16

BOLT NLA

17

COVER NLA

18

6964631

WASHER

19

6964751

INSERT

20

6964753

DECAL NLA - Was 6964753 - A

21

6974820

HOSE

22

1CM820

BOLT Was 4CM820 - A

Выбрано товаров: 22
