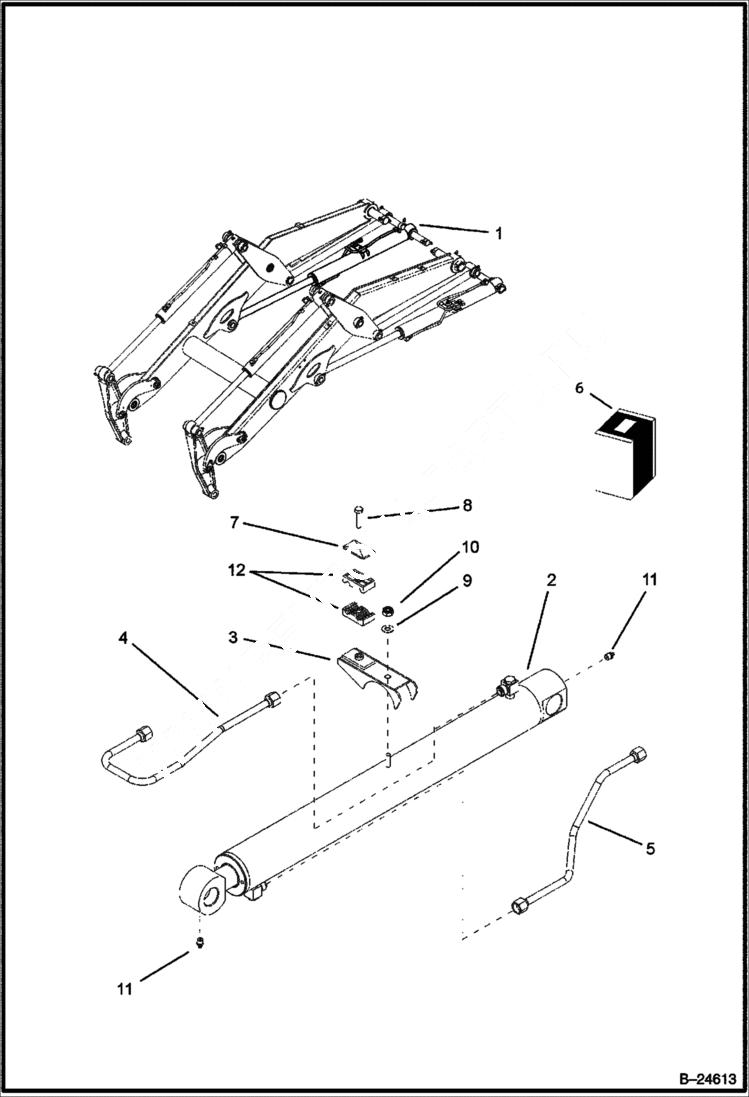

Запчасти Bobcat BL570 LIFT CYLINDER Loading Arms HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-11

2

7101619

CYLINDER

3

6964297

HOLDER

4

6964293

PIPE

5

6964295

PIPE

6

6962804

HOLDER Ref. 12

7

6962805

COVER

8

1CM835

BOLT

9

6968475

WASHER

10

16DM10

NUT

11

10H25

FITTING, GREASE 5

12

HOLDER NLA
