Запчасти Bobcat BL570 BUCKET CYLINDER Center Mount Backhoe HYDRAULIC SYSTEM

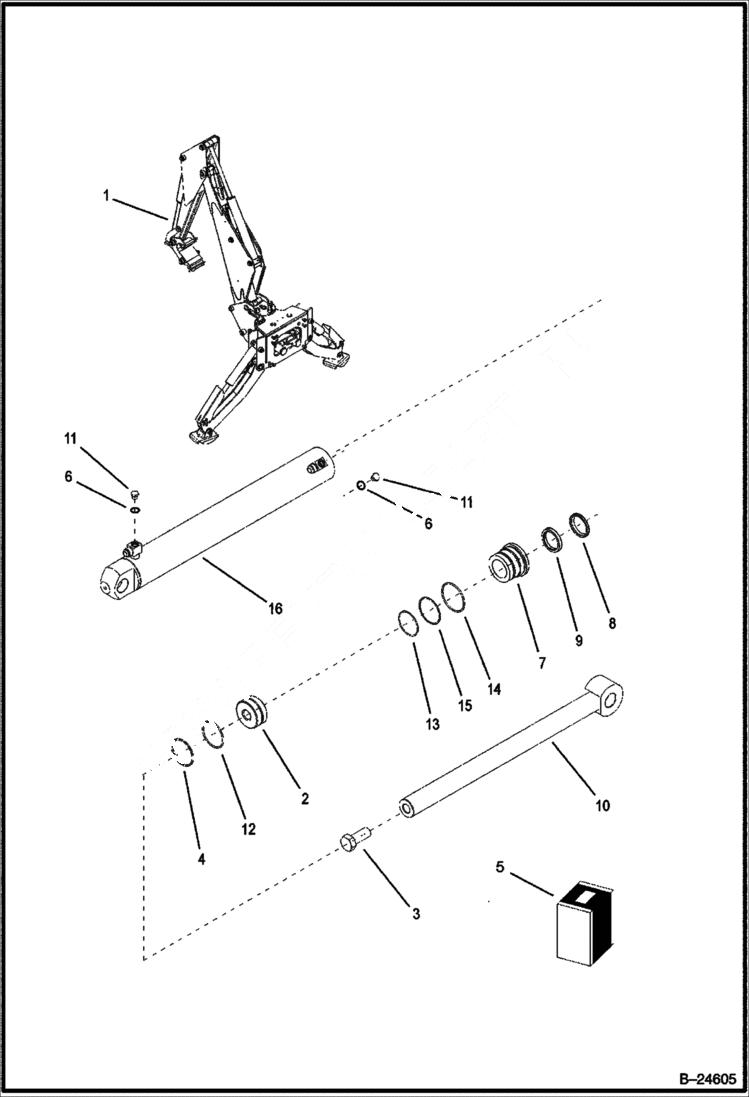

Схема запчастей Bobcat BL570 - BUCKET CYLINDER Center Mount Backhoe HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6533365

CYLINDER Ref. 2-4 & 6-16

2

6534307

PISTON

3

6586508

SCREW

4

947088

RING, BACK-UP

5

6587863

SEAL KIT Ref. 4, 8, 9 & 12-15

6

75K3

O-RING

7

6595005

HEAD

8

6686998

WIPER, ROD CYL Was 6666545 - A

9

6667328

SEAL

10

6807056

SHAFT

11

6812171

PLUG

12

25K30218

O RING 10 Was 54K30218 - B

13

25K40224

O RING 10 Was 54K40224 - B

14

58K234

O RING 10 Was 54K40300 - B

15

73K232

RING, BACK-UP back-up - Was 80K232 - A

16

TUBE NLA - Was 6536613 - A

Выбрано товаров: 16
