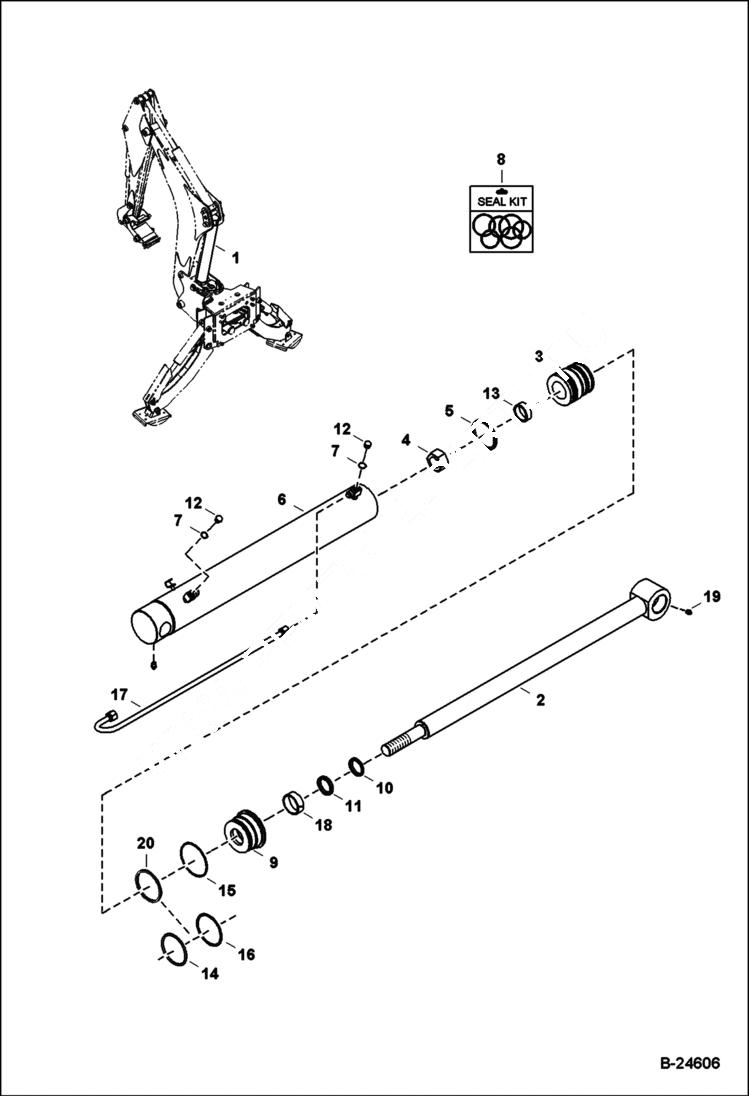

Запчасти Bobcat BL570 BOOM CYLINDER Center Mount Backhoe HYDRAULIC SYSTEM

1

6817214

CYLINDER Ref. 2-6, 9-16 & 18

2

6817215

SHAFT W/A

3

6685014

PISTON

4

6810540

NUT

5

6673123

SEAL NYLON

6

6817219

TUBE

7

75K7

O-RING

8

SEAL KIT Ref. 4, 5, 7, 10, 11, 14-16 & 18 - Was 6969458 - A

8

7196448

KIT, SEAL Ref. 4, 5, 7, 10, 11, 15, 18, & 20

9

7104264

HEAD

10

6686998

WIPER, ROD CYL Was 6666545 - A

11

6667328

SEAL

12

6816855

PLUG

13

6818171

SPACER

14

25K60320

O RING 10

15

82K242

O-RING

16

73K342

RING

17

6973629

TUBE

18

7000772

RING, WEAR Was 6698134 - A

19

10H25

FITTING, GREASE 5

20

7008351

SEAL, QUAD
